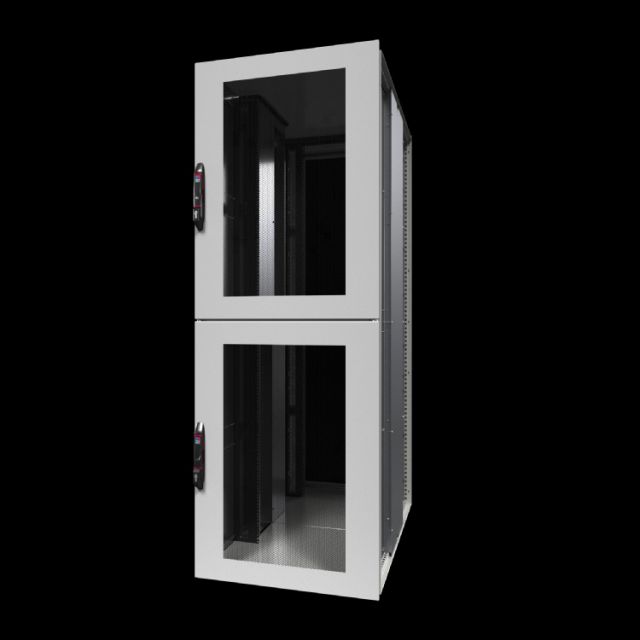

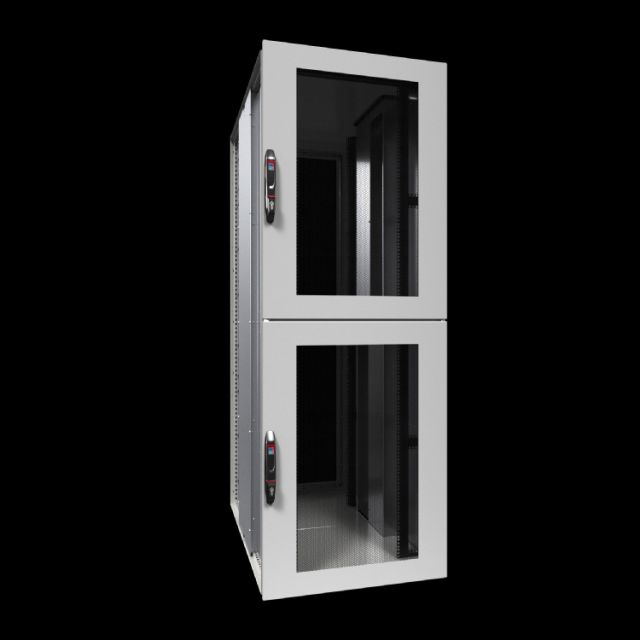

Compartment Rack VX IT 2-секционная, с вентиляцией

Перейти к оформлению заказа

О продукте

Преимущества

Enclosure pre-configured with 482.6 mm (19") mounting angles at the front and rear of each compartment, adjustable individually and independently of each other

Pre-configured 740 mm distance between mounting angles, individually adjustable

Door hinges can be swapped from right to left

Baying supported on all sides

Air baffle plates integrated into the 19" mounting frame

Max. door opening angle 130°, max. 115° in bayed suite

Технические характеристики

Max. load capacity 500 kg per compartment

Материал

Каркас шкафа: листовая сталь 1,5 мм
Roof plate: Sheet steel, 1.5 mm
Gland plate: Sheet steel, 1.0 mm
Front and rear door: Sheet steel, 1.5 mm
Mounting angles: Sheet steel, 2.5 mm

General colour

RAL 7035

Цвет

Рама корпуса и плоские детали: RAL 7035
19" mounting angles, hinges and handles spray-finished in RAL 9005

Комплект поставки

VX IT compartment rack, with two independent installation compartments
Each compartment with 482.6 mm (19") mounting angles, front and rear, screwed to the integrated dividers on the left and right

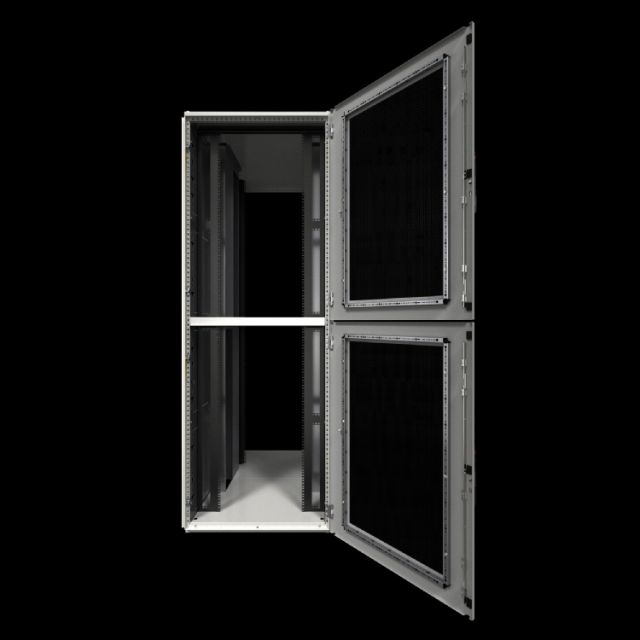

2 sheet steel doors, vented, front and rear
Gland plate divided in the centre, pre-configured across the entire rack depth
Контрольная ручка под профильный полуцилиндр 3524 E
Including potential equalisation, prepared for the attachment of earthing straps
Two 482.6 mm (19") mounting angles front and rear per compartment, depth-variable, front angles with all-round integrated air baffles
4 keys

Размер

Ширина: 800 мм
Высота: 2.200 мм
Глубина: 1.200 мм

Расстояние между плоскостями (в состоянии поставки)

740 мм

Number front doors

Number back doors

19" крепление

2 x 23 U

Incl. 482.6 mm (19") mounting angles front and rear per compartment, adjustable individually and independently of each other

Installation of PDU vertically in the rear area

Vertical PDU with IEC C20 connection (max. length of PDU 1000 mm), Model No. 7979.117/.118/.217/.317/.417

Vertical PDU – CEE connector/16 A, 1~/3~, Model No. 7979.110/.111/.130/.132/.135/.210/.310/.410/.510/.230/.330/.430/.530

Исполнение

Compartment Rack, 2 x 23 U

Roof design

One-piece roof plate, with cable entry on both sides in the centre part of the roof

Design doors

Door opening angle max. 130°

Incl. 2-point locking rod

Rear door design

2-секционная, с вентиляцией

Front door design

2-секционная, с вентиляцией

Mounting angle design

19" mounting angles in the VX IT Compartment Rack

Base design

Base frame with pull-out, two-part solid gland plate pre-assembled

Исполнение 19" плоскости (плоскостей)

19" плоскость спереди и сзади

19" mounting level with universal mounting angles front and rear, depth-variable, 12.5 mm pitch pattern, screwed to the divider panels on the left and right, with integrated air baffle plates

Air baffle plate with integral, vertical 1 U 482.6 mm (19") mounting cut-out on the right and left of each compartment, as additional interior installation space or for cable routing.

Mounting angles position

19" плоскость спереди и сзади

Нагрузочная способность

1 000 кг

Указание

В зависимости от типа и места установки угол открытия двери может отличаться для конкретного случая

Основной материал

Листовая сталь

Упаковка

1 шт.

Вес нетто

200 kg

Gross weight

216 kg

EAN

4028177950115

ETIM 9

EC002499

ETIM 8

EC002499

ECLASS 8.0

27180207

Описание продукта

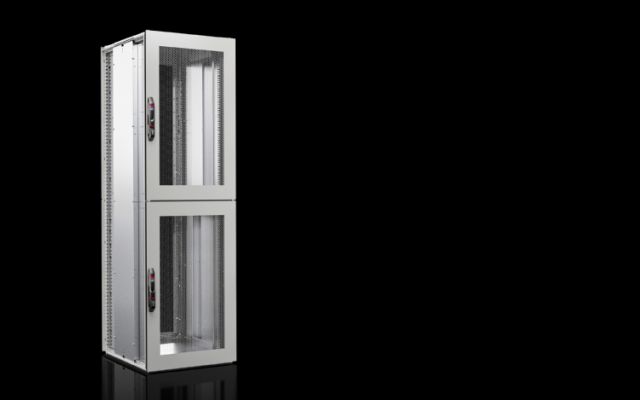

VX IT Compartment Rack, vented, 19" mounting angles front and rear, 2 compartments, 2 x 23 U, WHD: 800x2200x1200 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
