EuropacPRO Advanced EMC Plus, 19" Subrack Kit for Backplane, Heavy, Shielded, without Front Handle, 6 U, 295 mm, D1 160 mm

О продукте

Advanced EMC subrack with on average 60% improved RF shielding effectiveness compared to a standard EuropacPRO, tested according to EN 61000-5-7
Dual mesh top and bottom covers with EMC and airflow optimized perforation, fulfills the requirements of the fire safety standard EN 62368-1
Additional side panel covers for increased lateral RF shielding
Horizontal rails and side panels of type H (“Heavy”) for harsh environments

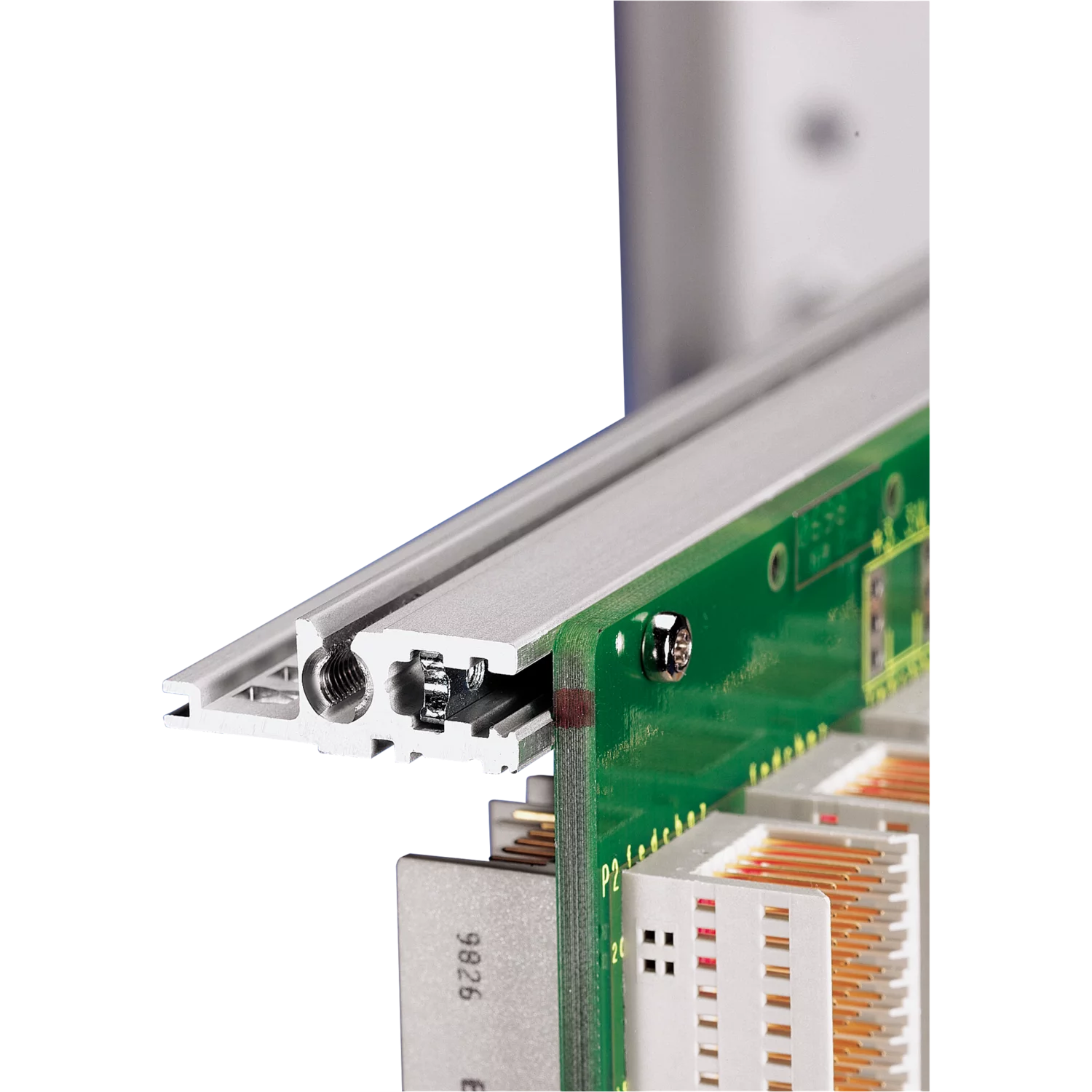

Rear horizontal rail for direct backplane mounting without insulation strip
Shock and vibration resistant up to 5 g, tested in accordance with EN 61373 class 1, category B
Installation load up to 15 kg
Compatible with textile and stainless-steel U-front panel gaskets
Internal and external dimensions in accordance with: IEC 60297-3-100, -101, IEEE 1101.1
Versions with and without front handles
Supplied as space-saving flat-pack, modifications and assembly services on request

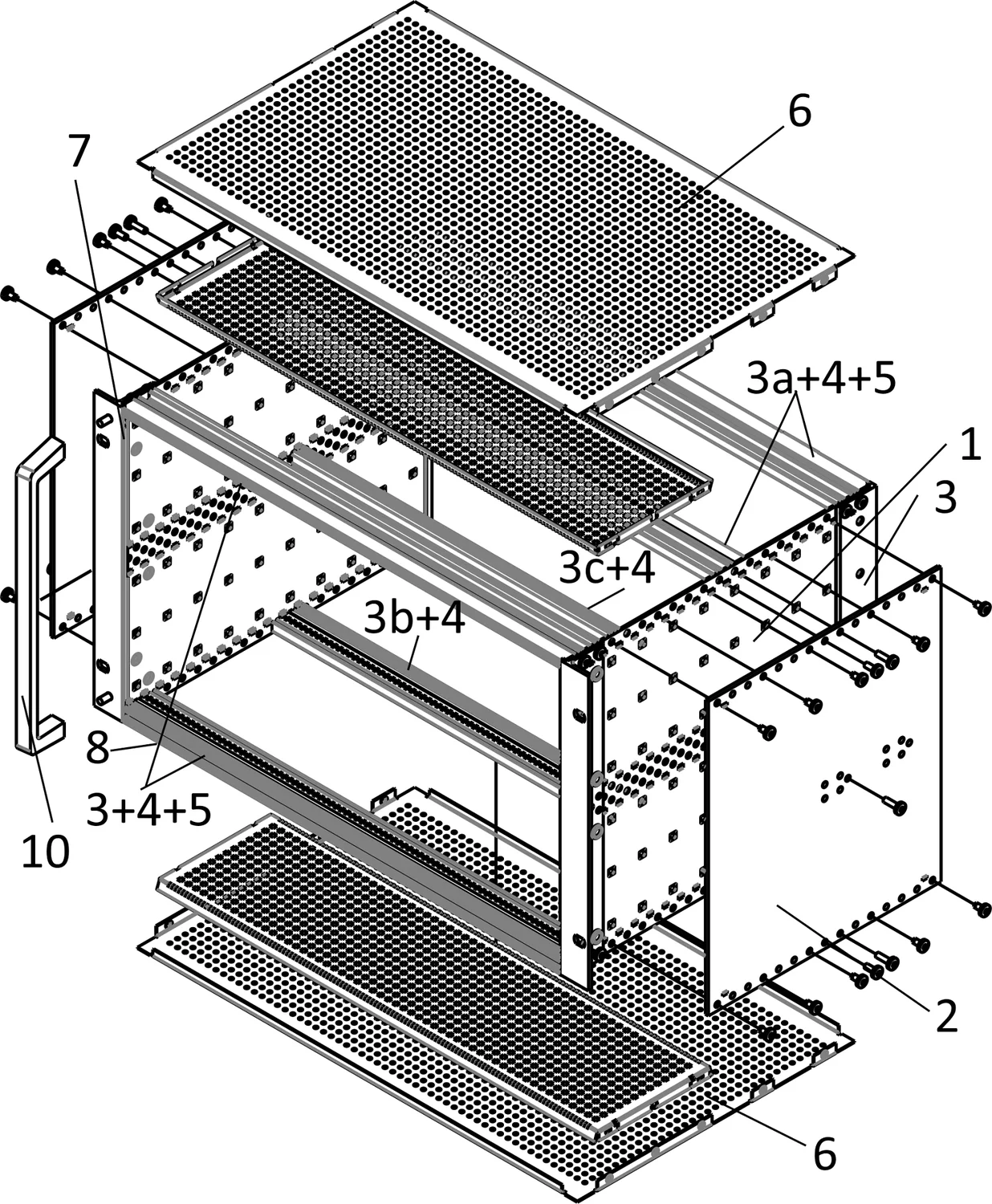

Delivery of this product includes the following item(s):

Item	Description	Quantity
1	Side panel type H, Al, 2 mm, passivated, with 19" support bracket (tox-cold welded); for EMC textile or stainless steel gasket	2
2	Rear corner profile for EMC sealing (textile or stainless steel)	2
3	Front horizontal rail (H‐KD)	2
3a	Rear horizontal rail (H-KD)	2
3b	Rear horizontal rail (H-VT)	2
3c	Centre horizontal rail (H-VT)	2
4	Threaded insert (pre-fitted)	6
5	Perforated strip (pre-mounted)	2
6	Advanced EMC Side Panel Cover	2
7	Advanced EMC Plus cover plates, dual mesh premounted	2
8	EMC gasketing material (pre-fitted)	1
10	Fixing materials kit, user manual	1
