Артикул: 10630-051
В наличии
Отправить заявку на расчет КП
Товар добавлен в корзину:

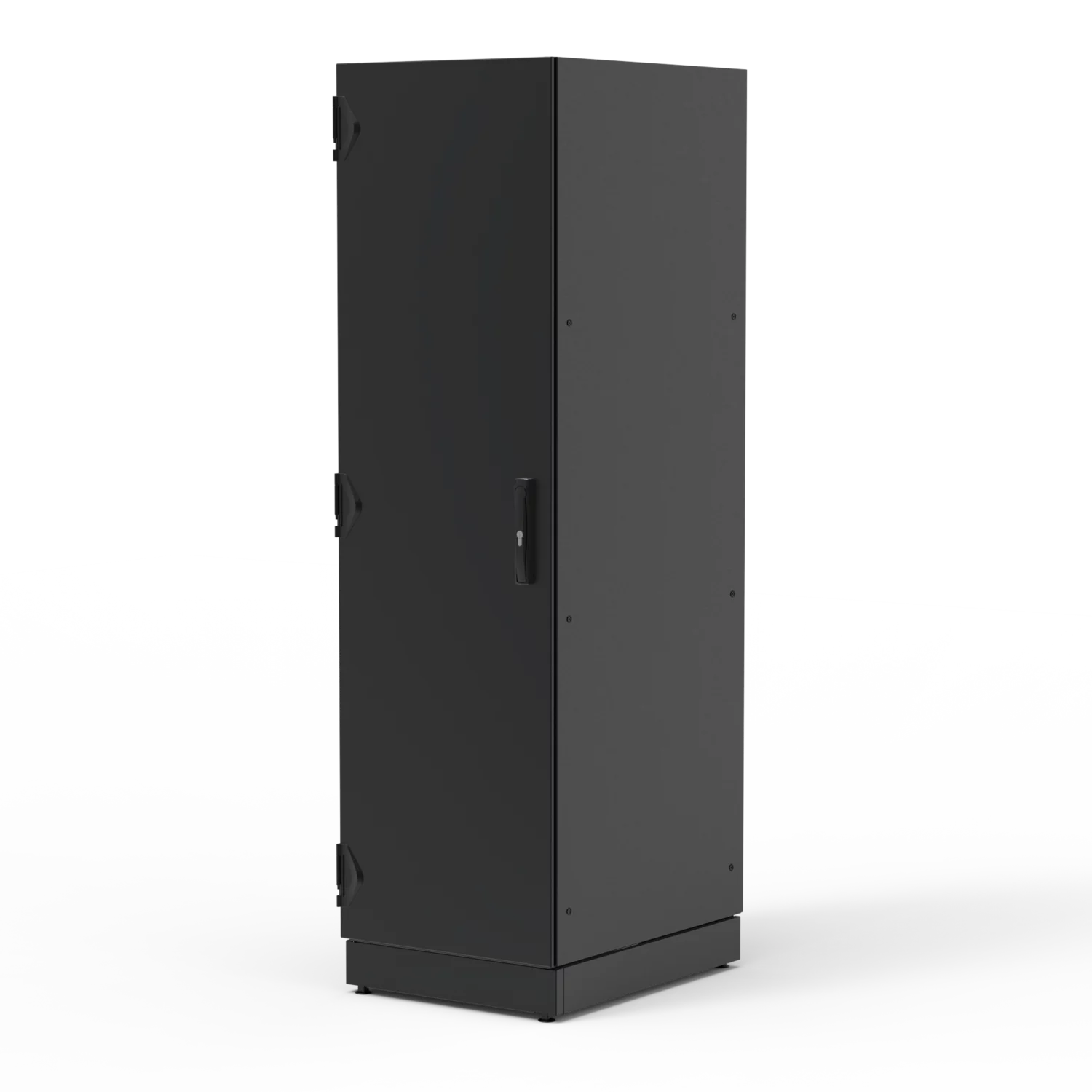

Varistar CP LHX+ Cabinet, 5 KW, RAL 7021, IP 55, 42 U, 2100H, 600W, 800D
- Cabinet with integrated LHX + 19” in rack cooler, cooling capacity of up to 10 kW with temperature accuracy of Δ 0.1 °K or °C

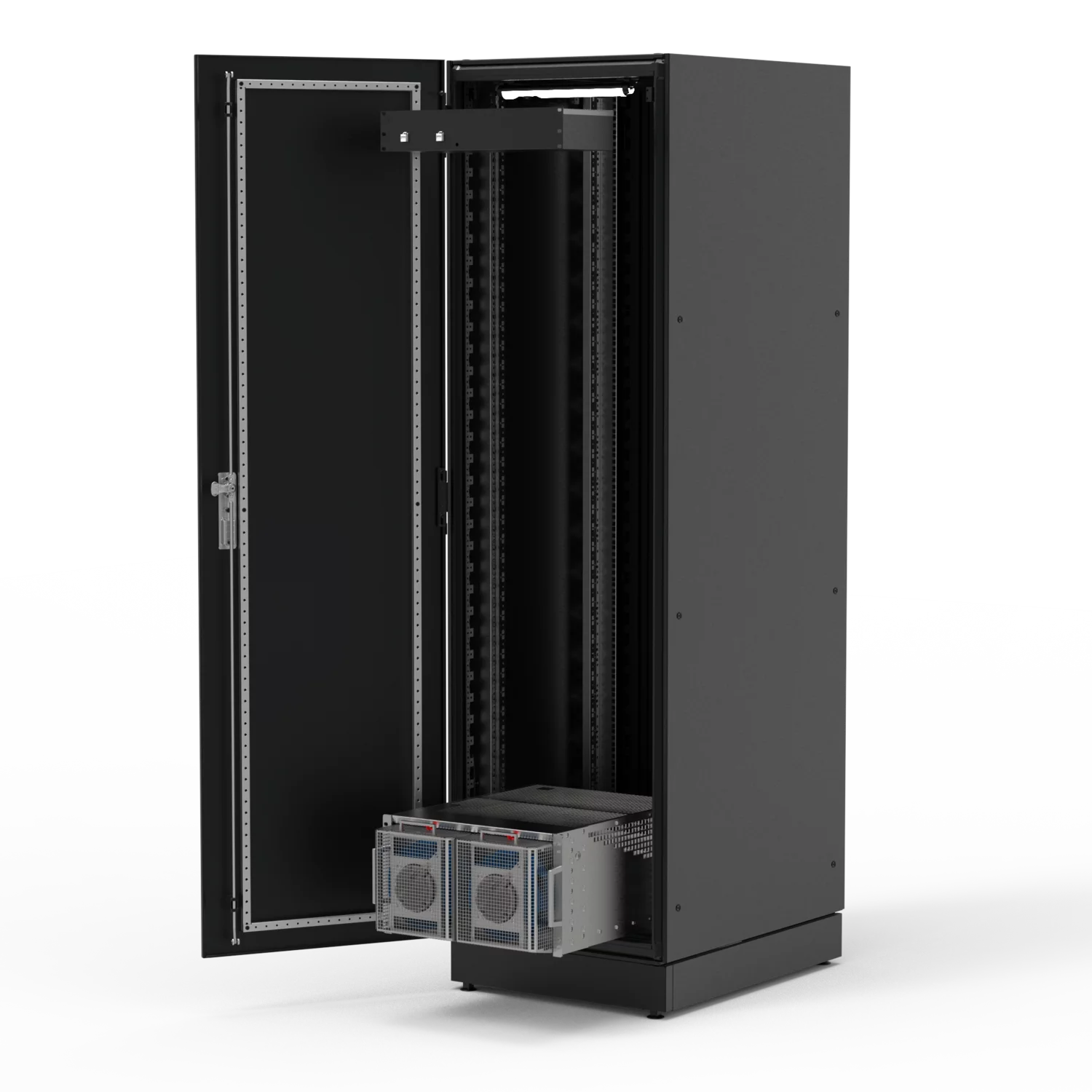

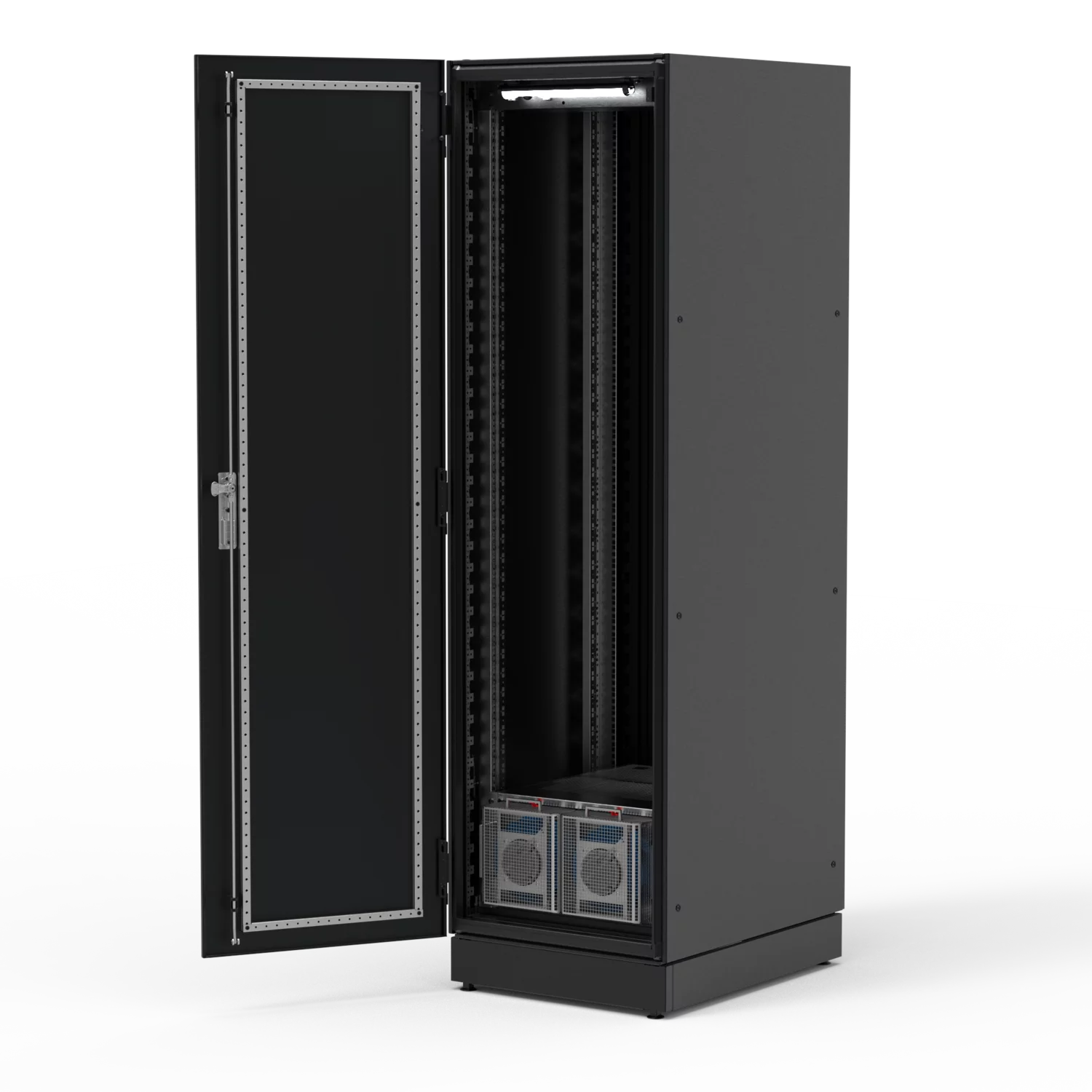

- Cooling unit mounted on the 19" upright at the bottom and controller at the top. This leaves 35 U usable space
- Gaskets reduce noise as low as 50.4 dB(A) at 0.2 m distance and pulling of ambient air into the cabinet
- Enclosures with effective cable ducting with minimal effect on IP and EMC performance
- All monitoring and managing functions can be remotely operated
- Max. static load capacity 1600 kg
Certification
Test Report
Руководство по установке / Инструкция
Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | Welded frame, St, RAL 7021, with all-round rubber gasket | 1 | |
| 2 | Stationary plinth with brush strip in the rear, 100mm, St, RAL 7021 | 1 | |
| 3 | Flat top cover, St, RAL 7021 | 1 | |
| 4 | Front door, St, RAL 7021, 180° hinge, 4 point locking, lever handle | 1 | |
| 5 | Rear panel, screwed, St, RAL 7021 | 1 | |
| 6 | Side panel, screwed, St, RAL 7021 | 2 | |
| 7 | Bottom plate with cable entry, St, RAL 7021 | 1 | |
| 8 | 19" panel/slide mount with EIA cut‐outs, AlZn, fixed at front, adjustable in 25 mm increments at rear | 2 | |
| 9 | LHX+ 5 KW air/water heat exchanger, 100 ... 240 VAC, 1 fan, 6 U, width 426 mm, depth 500 mm | 1 | |
| 10 | Control unit, door and rear panel contact | 1 | |
| 11 | User manual | 1 |
