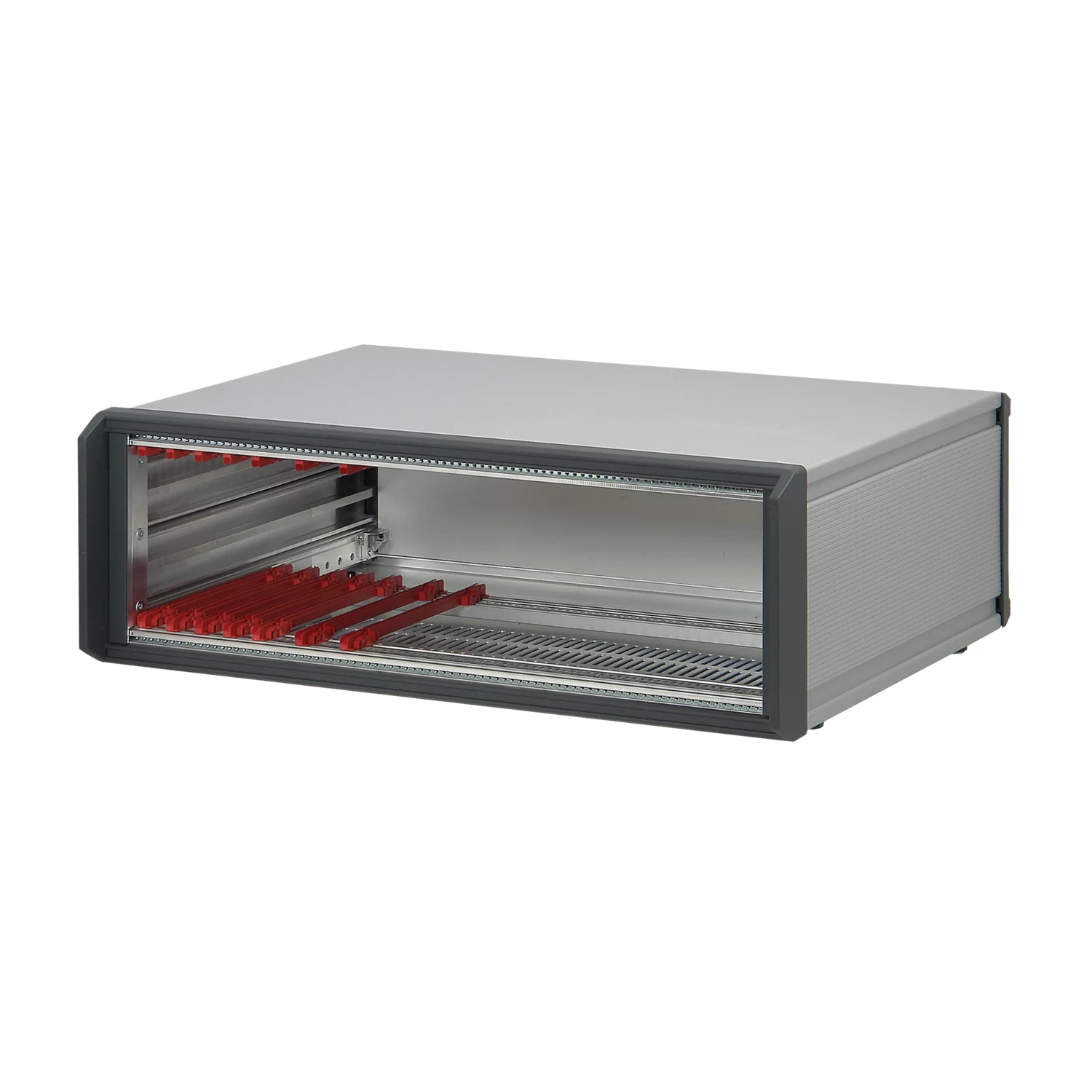

Настольный корпус в сборе PropacPRO, экранированный, высота 3 U, 84 HP, 446 мм
- Настольный корпус, в сборе, конфигурация в соответствии с IEC 60297-3-101 для 19-дюймовых компонентов
- с экранированием
- Вентиляционные отверстия в нижней крышке
- Задняя панель с вентиляционными отверстиями
- IP 20 в соответствии с IEC 60529
- В соответствии с DIN EN 62368-1
Test Report
Руководство по установке / Инструкция

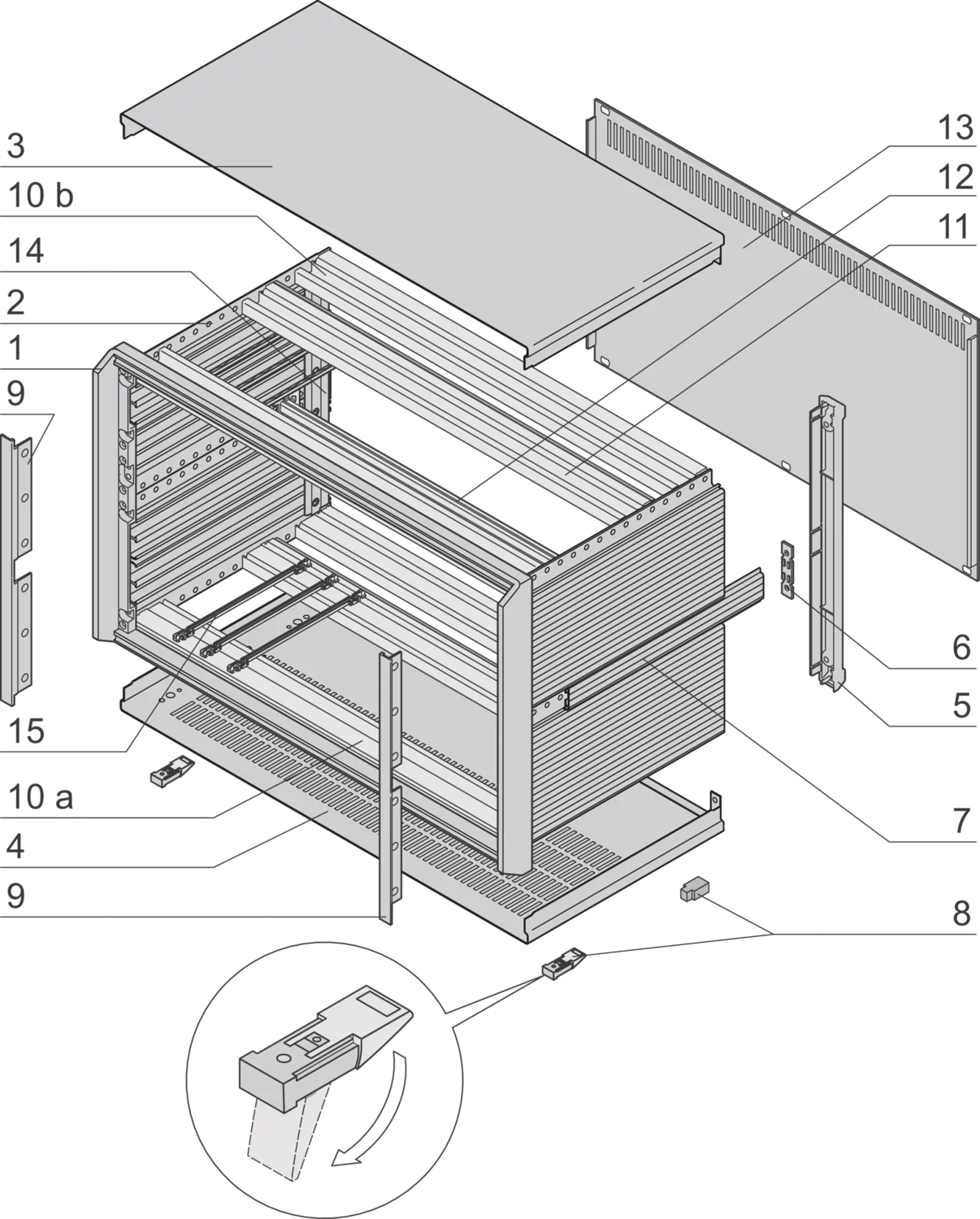

Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | Frame, Al die-cast, powder-coated, RAL 7016 | 1 | |
| 2 | Side panel, Al extrusion, powder-coated, RAL 9006, with EMC side panel gasketing | 2 | |
| 3 | Cover plate, Al, 1 mm, internal surface conductive, visible surface powder-coated, RAL 9006, with GND/earthing tag | 1 | |
| 4 | Base plate, Al, 1 mm, internal surface conductive, visible surface powder-coated, RAL 9006, with GND/earthing tag, base plate with 4 rows of ventilation slots | 1 | |
| 5 | End piece for rear, ABS, RAL 7016, UL 94 V-0; can be used as a foot when case is used in vertical position | 2 | |
| 8 | Case foot with anti-slip protection, PC, black, UL 94 V-0 (20603-002) | 4 | |
| 9 | Lateral trim, Al extrusion, visible surface painted, RAL 7016 with EMC sealing (textile) | 2 | |
| 10a | Horizontal rail, Al extrusion, with threaded insert, St, M2.5; perforated strip, Al, 1 mm, EMC contact strip between front panel - horizontal rail - cover plate | 2 | |
| 10b | Horizontal rail, Al extrusion, with threaded insert, St, M2.5; EMC contact strip between rear panel - horizontal rail - cover plate | 2 | |
| 11 | Centre horizontal rail top/bottom, Al extrusion, with threaded insert, St, M2.5 and insulation strip, PBT, UL 94 V-0 (for indirect backplane mounting); enclosed loose | 2 | |
| 13 | Rear panel with perforation, Al, 2.5 mm, anodised, with EMC sealing (textile) affixed | 1 | |
| 14 | EMC support profile rear, Al extrusion, EMC sealing (textile) affixed | 2 | |
| 15 | Guide rail for 160 mm board length, PBT, UL 94 V-0, 20 pieces, | 20 | |
| 16 | GND/earthing kit | 1 | |
| 17 | Assembly kit | 1 |
