RatiopacPRO Style, Front and Rear Trim, Screwless Front, 6 U, 84 HP, 355,5 mm

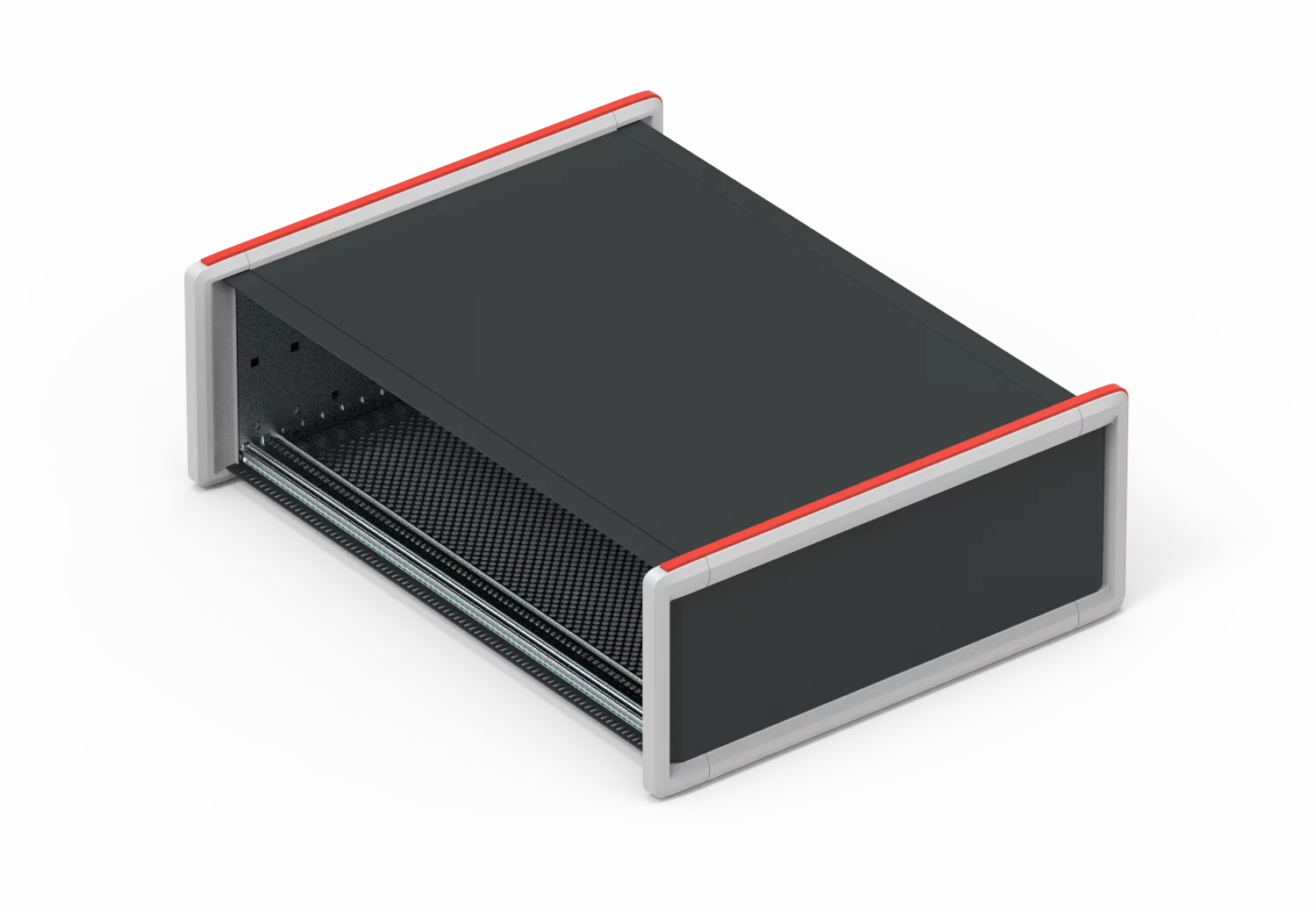

- Desktop case with protective frame design and rubber strips on the top and bottom for a secure stand and with integrated stacking function
- Case for 19" components (guide rails) or proprietary components (mounting plate).
- To establish EMC-shielding, additional components need to be added to the enclosure.
- Front side for front panel mounting without screws and rear side prepared for standard front panel mounting.
- Perforated bottom cover for air-cooling
- No visible screws; cladding parts removable without tools
- For board depth 160 mm, 220 mm, 280 mm and 340 mm (depending on case depth)
Certification
Руководство по установке / Инструкция

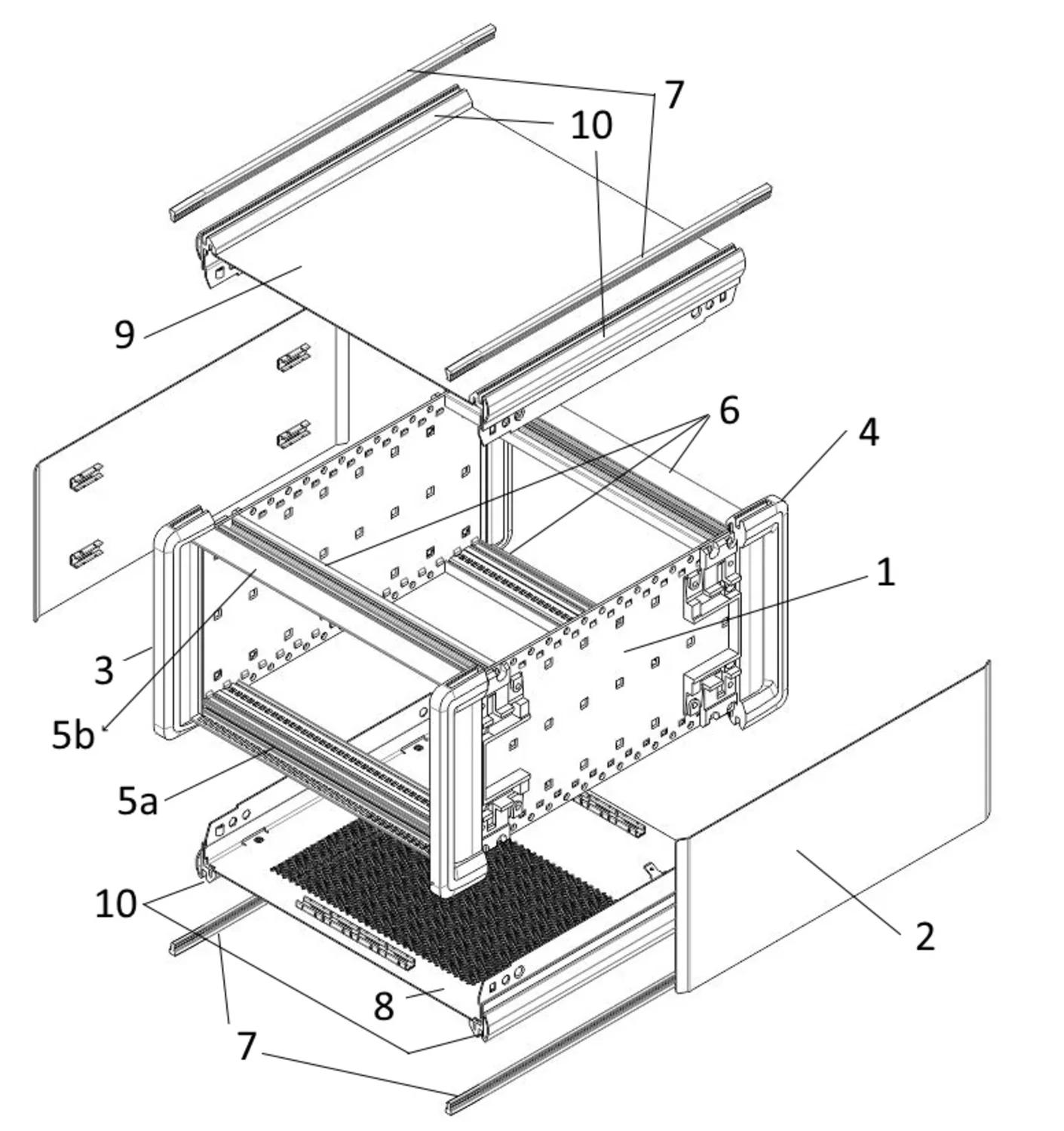

Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | Side panel, AI, 2 mm, passivated | 2 | |
| 2 | Side cover, Al, 1 mm, visible surface RAL 7016 | 2 | |
| 3 | Front Trim, die-cast zinc, RAL 9006 | 2 | |
| 4 | Rear Trim, die-cast zinc, RAL 9006 | 2 | |
| 5b | Horizontal rail, type H-LD, Al, visible surfaces powder coated, RAL 7016, for Screwless Front | 2 | |
| 6 | Horizontal rail, type H-LD, Al, visible surfaces powder coated, RAL 7016 | 2 | |
| 7 | Rubber Strip, RAL 3000 | 4 | |
| 8 | Bottom cover with round perforation Ø 2.3 mm, Al, 1 mm, internal surface conductive, visible surface RAL 7016, with GND/earthing connection | 1 | |
| 9 | Top Cover, Al, 1 mm, Surface RAL 7016, with GND/earthing connection | 1 | |
| 10 | Depth profile, Al-profile, RAL 9006 | 4 | |
| 11 | Fixing materials kit and user manual | 1 |
