Артикул: 10149-336
В наличии
Отправить заявку на расчет КП
Товар добавлен в корзину:

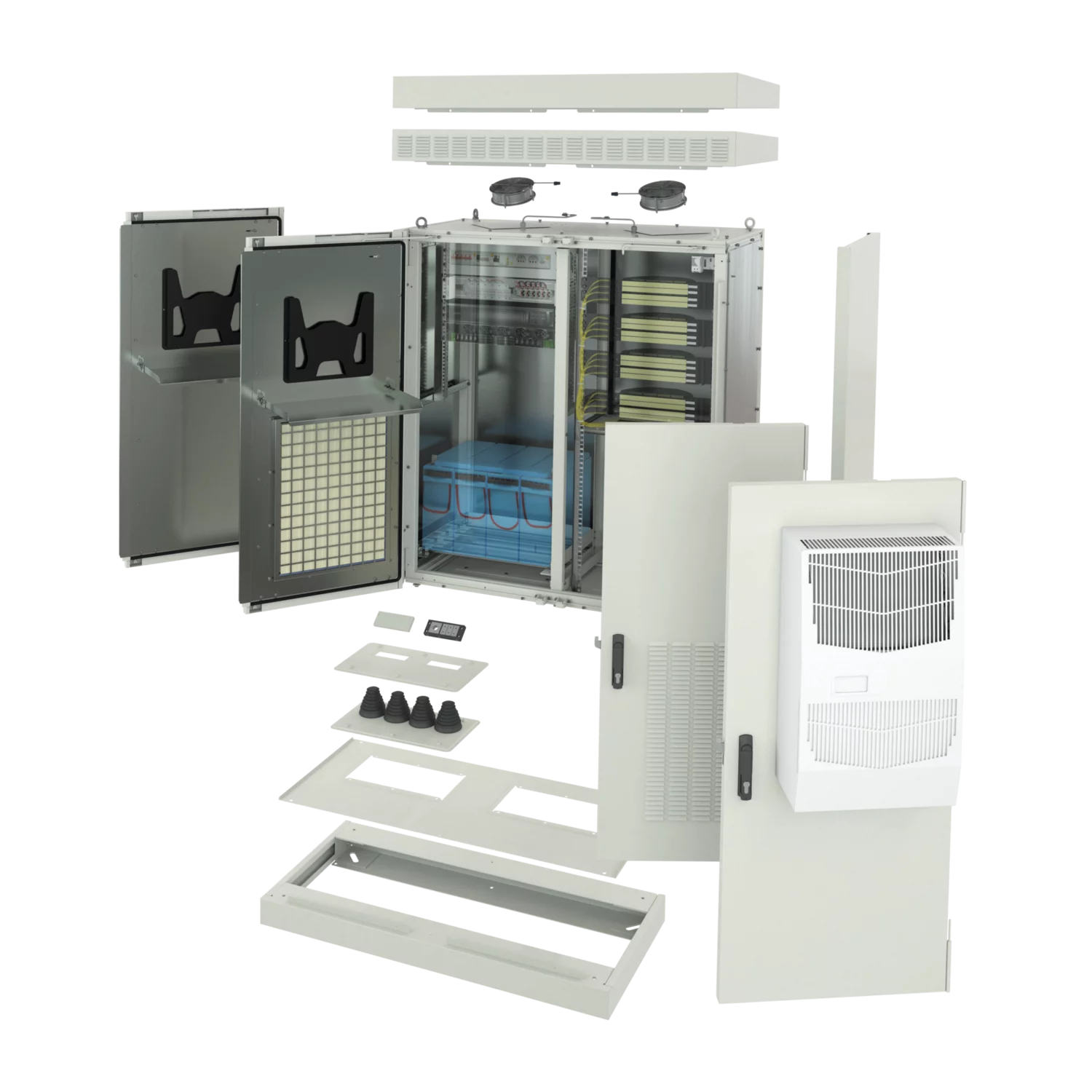

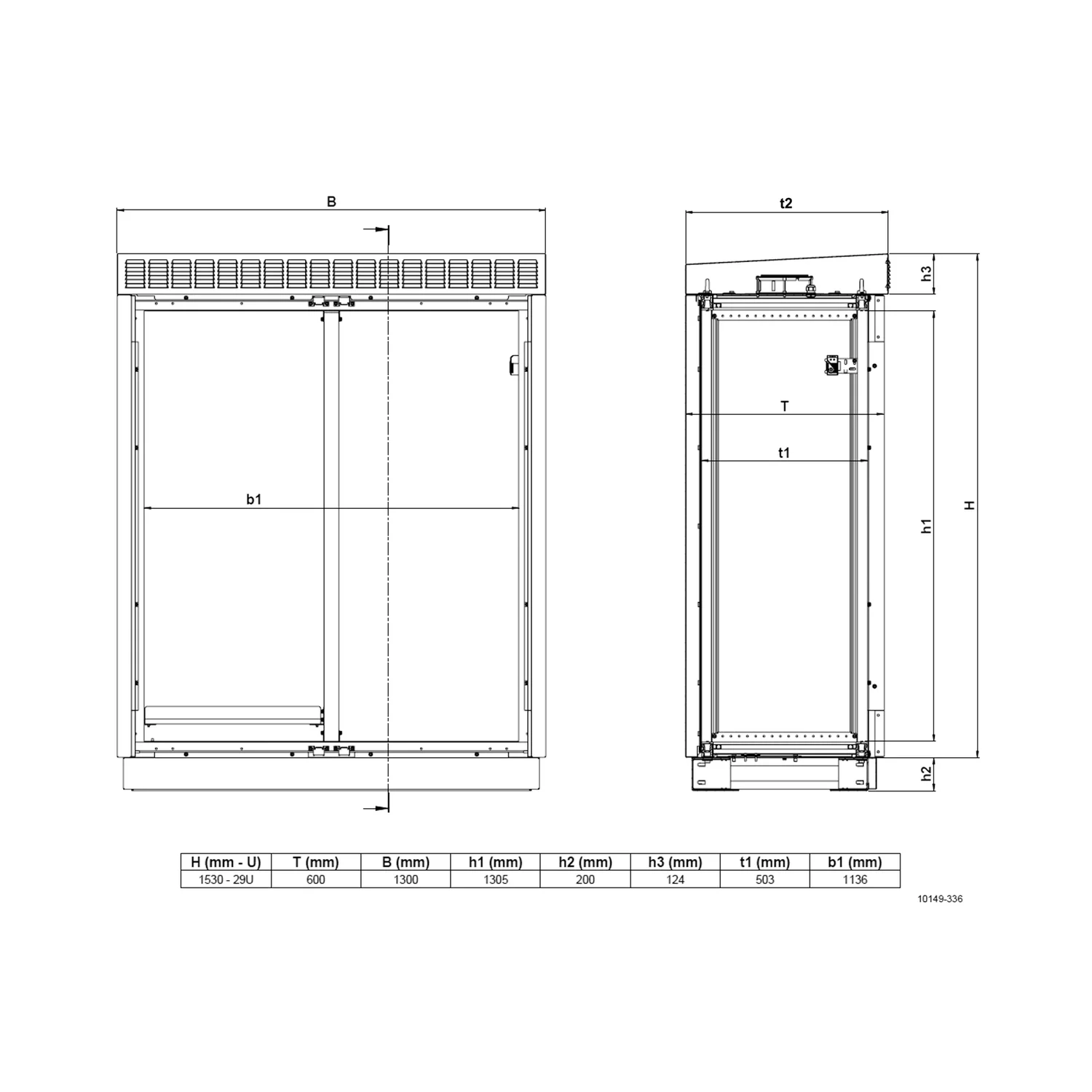

Модульный шкаф VENT с двумя дверями для установки вне помещений, кондиционер, высота 1530 мм, высота 29 U, ширина 1300 мм, глубина 630 мм
- Aluminium profile frame with removable, double-walled cladding
- IP 55 or NEMA 12~
- Double-walled
- Extensive range of 19" cabinet accessories
- Access to cabinet from all sides
Test Report
Каталог
Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | Frame, screwed, Al | 1 | |
| 2 | Double skin sidewall, Al inside raw; St RAL 7035 outside (RC2) | 2 | |
| 3 | Double skin double door, Al raw inside; St RAL 7035 outside; 3-point lock, swivel handle with DIN profile half cylinder, door opening angle 135 °, door lock at 120 °; 2 equal width door leaves, door hinges left + right | 1 | |
| 4 | Double skin rear panel, Al raw, inside raw; St RAL 7035 outside | 1 | |
| 5 | Double skin roof, Al raw inside, stainless steel outside, RAL 7035, including lifting eyes (10149-336) | 1 | |
| 6 | Base/Plinth, St RAL 7035, with removable panels, heigth 100 mm, bottom panel Al inside raw | 1 | |
| 7 | Depth members for 19 "/ metric panel/slide mounts, St surface AlZn | 4 | |
| 8 | 19" frame, St surface AlZn | 1 | |
| 9 | Earth/grounding kit, mounted | 1 | |
| 10 | Air conditioner (T290426G150) in 10149-336, St RAL 7035, 1172 W, 230 VAC, 67 db (A), thermostat, heater 1000 W, mains connection Nema 6-15P | 1 | |
| 11 | RC2 stiffening | 1 |
