Артикул: 10149-337
В наличии
Отправить заявку на расчет КП
Товар добавлен в корзину:

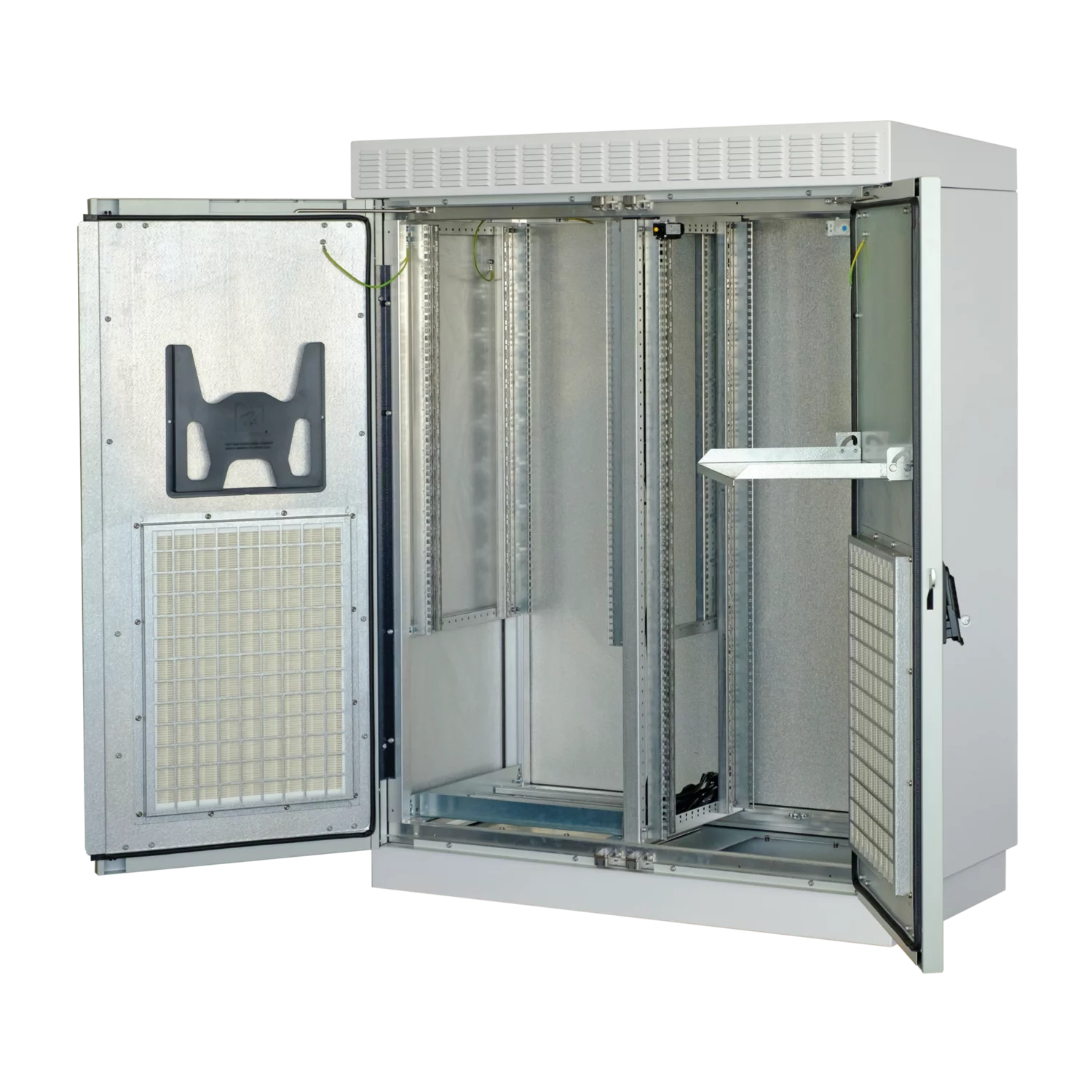

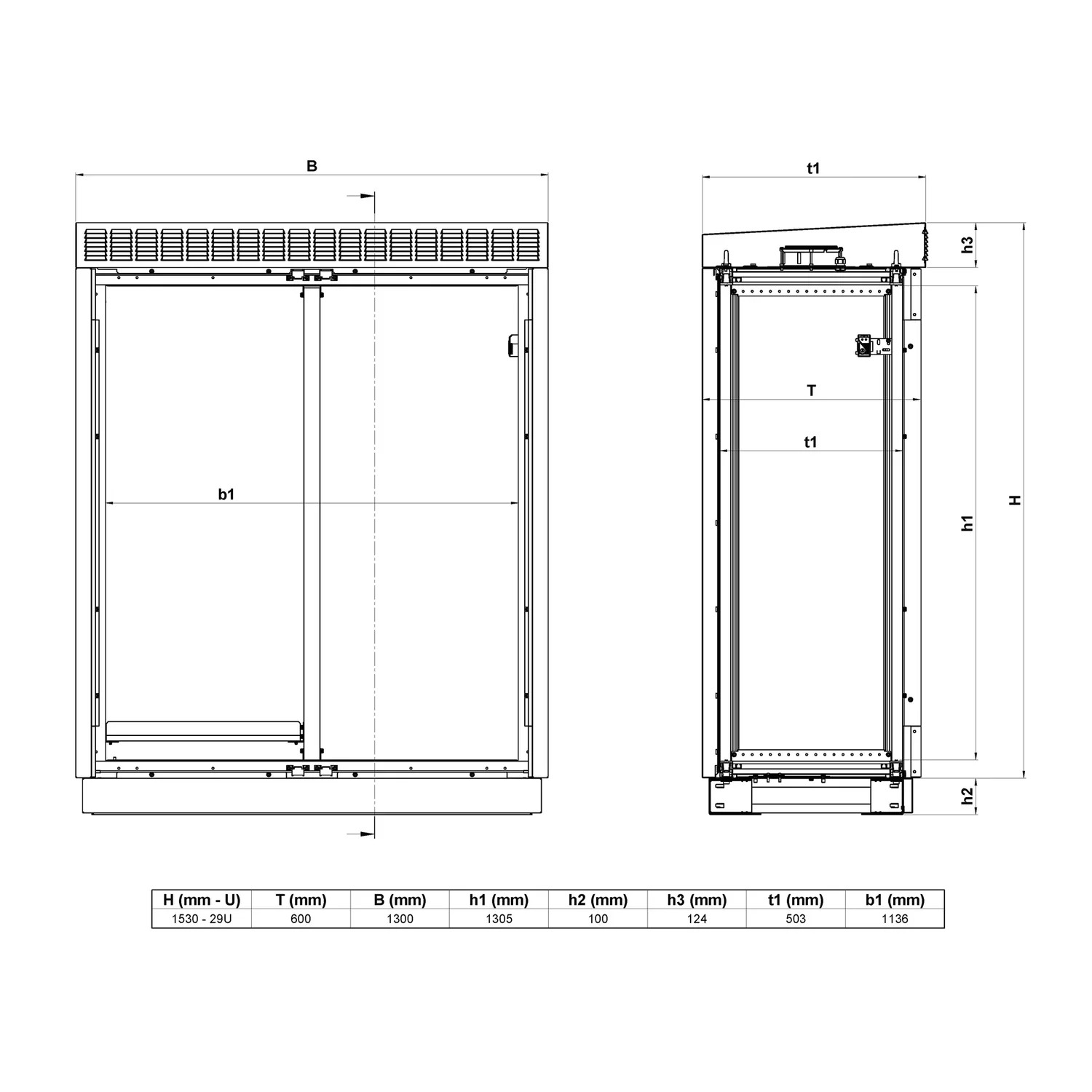

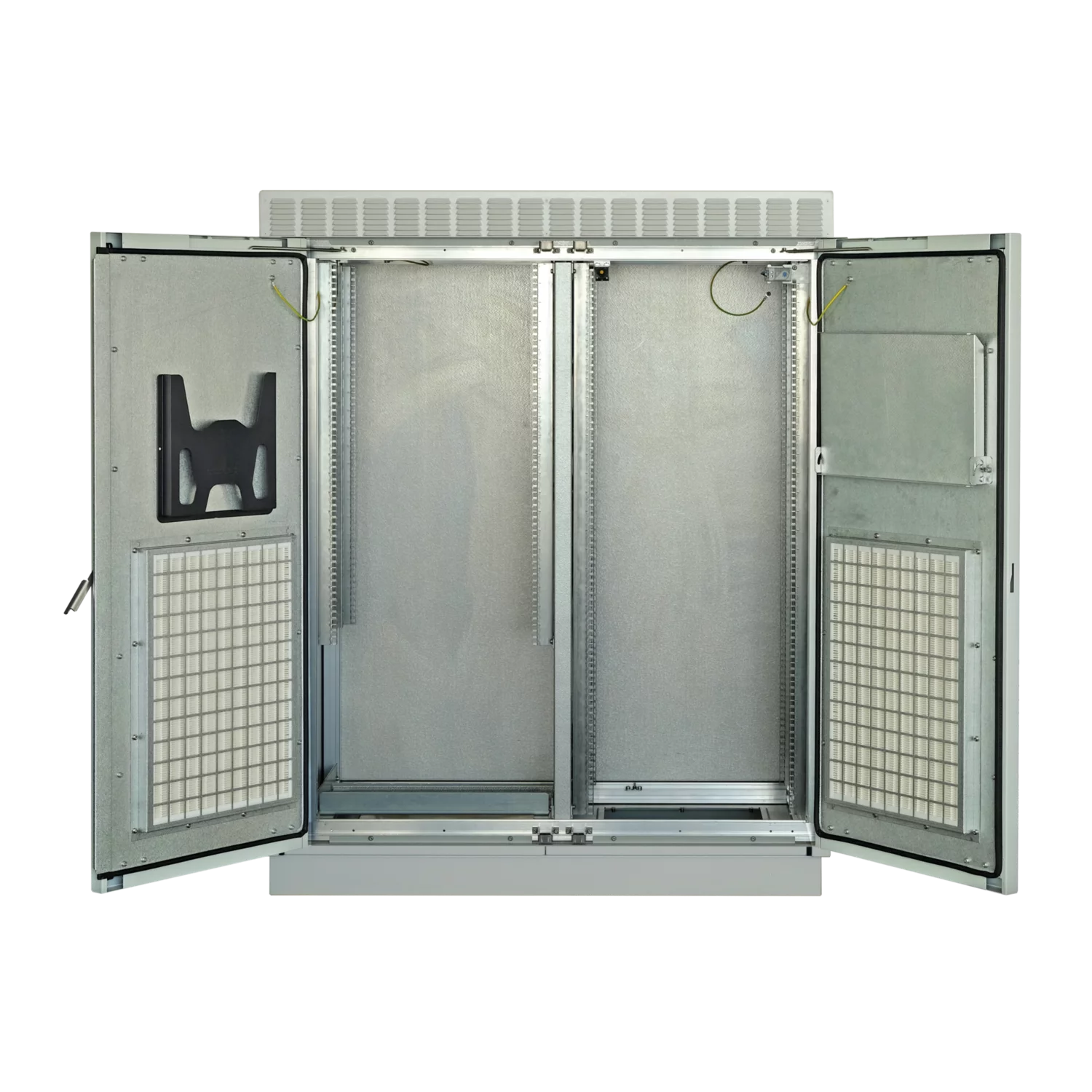

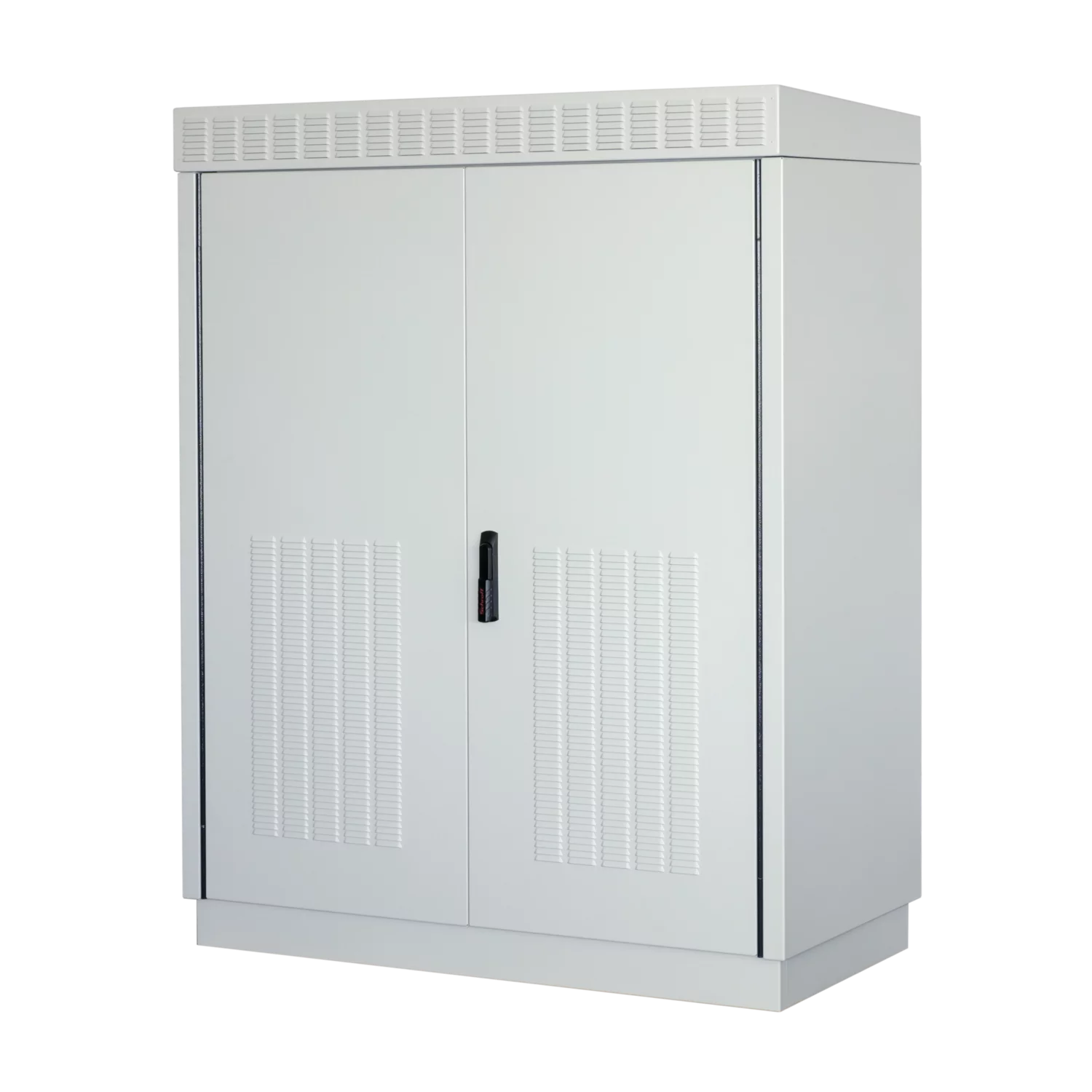

Модульный шкаф VENT с двумя дверями для установки вне помещений, вентилятор, высота 1530 мм, высота 29 U, ширина 1300 мм, глубина 630 мм
- Aluminium profile frame with removable, double-walled cladding
- IP 55 or NEMA 12~
- Double-walled
- Extensive range of 19" cabinet accessories
- Access to cabinet from all sides
Test Report
Каталог
Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | Frame, screwed, Al | 1 | |
| 2 | Double skin sidewall, Al inside raw; St RAL 7035 outside | 2 | |
| 3 | Double dskin oor, Al raw inside; St RAL 7035 outside; 3-point lock, swivel handle with DIN profile half cylinder, door opening angle 135 °, door lock at 120 °; 2 equal width door leaves, door hinges left + right | 1 | |
| 4 | Double skin rear panel, Al raw, inside raw; St RAL 7035 outside | 1 | |
| 5 | Double skin roof, Al raw, inside raw; St RAL 7035 outside (including lifting eyes) | 1 | |
| 6 | Base/Plinth, St RAL 7035, with removable panels, heigth 100 mm, bottom panel Al inside raw; socket cover (2 x 21149-299) | 1 | |
| 7 | Depth members for 19 "/ metric panel/slide mounts, St surface AlZn | 4 | |
| 8 | 19" frame, St | 1 | |
| 9 | Earth/grounding kit, mounted | 1 | |
| 10 | Axial fan (2 pieces), 360 m³ / h free-blowing per fan, 53 dB (A), max. Power consumption 35 W, terminal block connection, thermostat, 24 VDC; installed at the top; Filter mats M5 in the door | 1 | |
| 11 | Laptop carrier (21149-250), mounted on the inside of the door | 1 | |
| 12 | Data pocket (ADP2), mounted on the inside of the door | 1 | |
| 13 | Battery compartment bottom (21149-247) and lock (21149-276), mounting on the floor | 1 |
