Артикул: 14579-042
В наличии
Отправить заявку на расчет КП
Товар добавлен в корзину:
PXI Express System, 4 U, 18 slots, Gen3 x 8

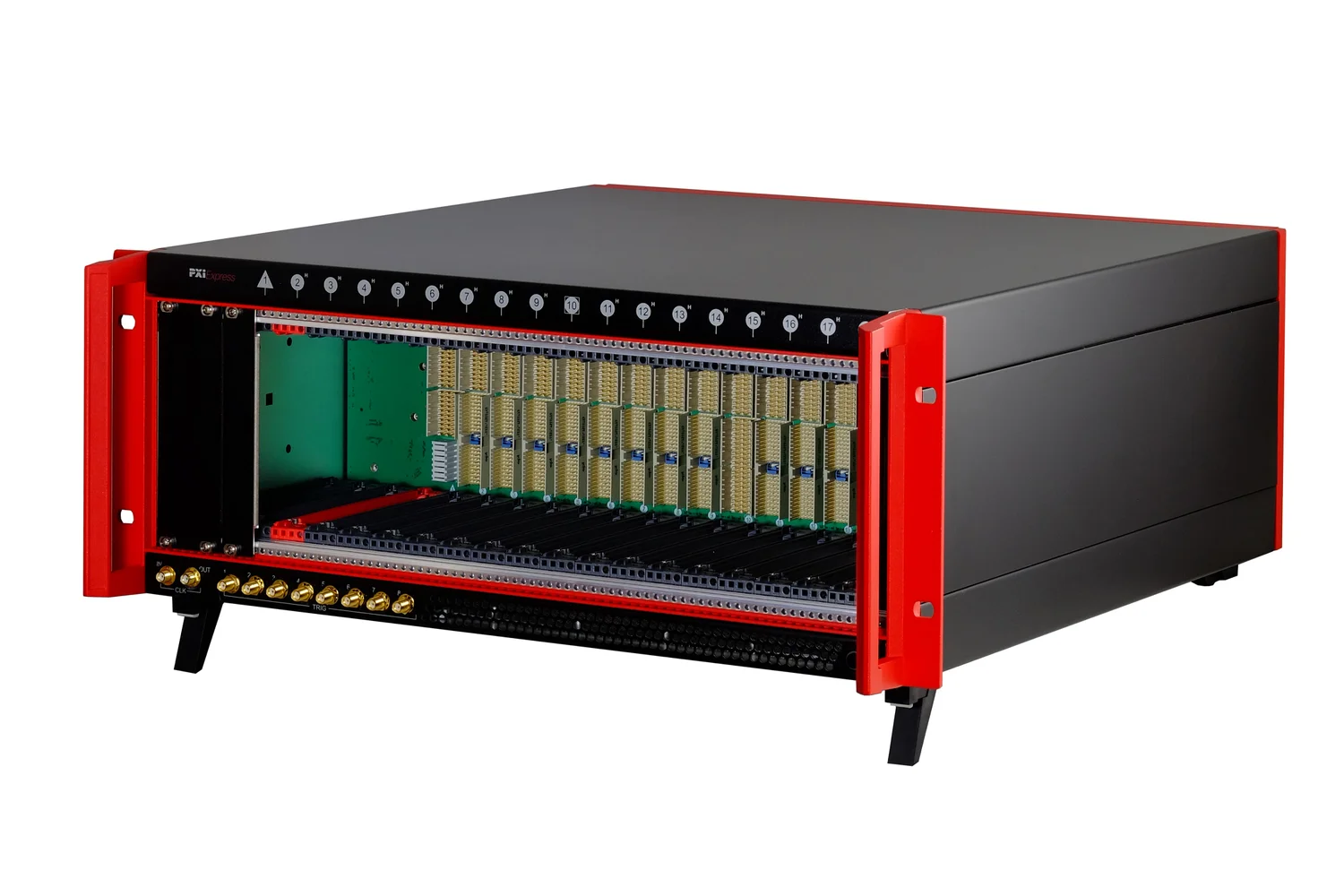

- PXI Express Desktop Chassis, 4 U, 84 HP, with handles and 19“ mounting brackets
- 1 PXI Express System Slot with 16 HP width, 1 PXI Express Timing Slot and 16 Hybrid Slots
- Gen 3 PCIe switching with a two-link (1x16 and 1x8) System Slot
- Powerful cooling concept with low fan noise, 80 W per slot @ 15K temperature increase

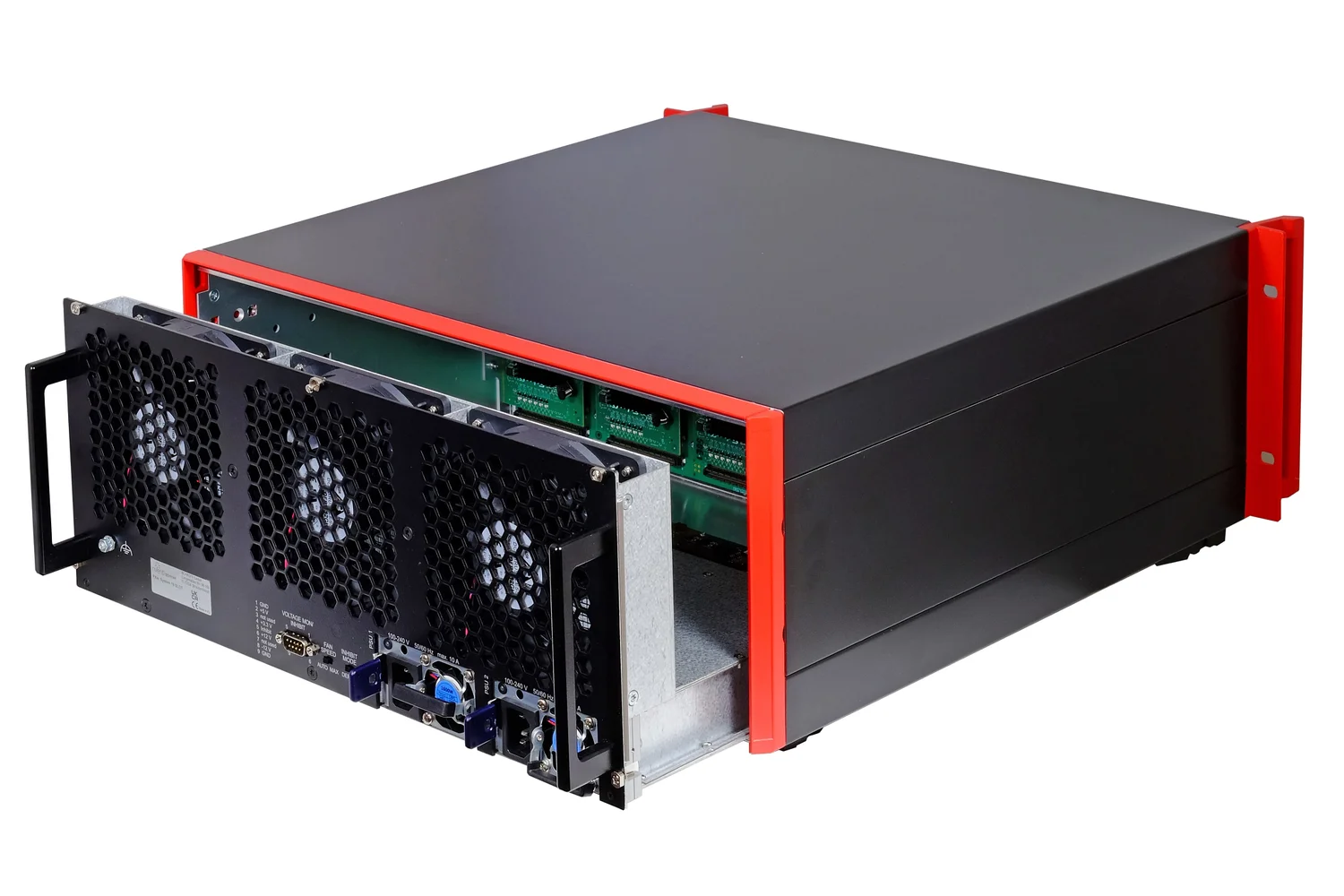

- Air flow from bottom to rear with temperature controlled fans; Integrated Chassis Monitoring Modul (CMM)

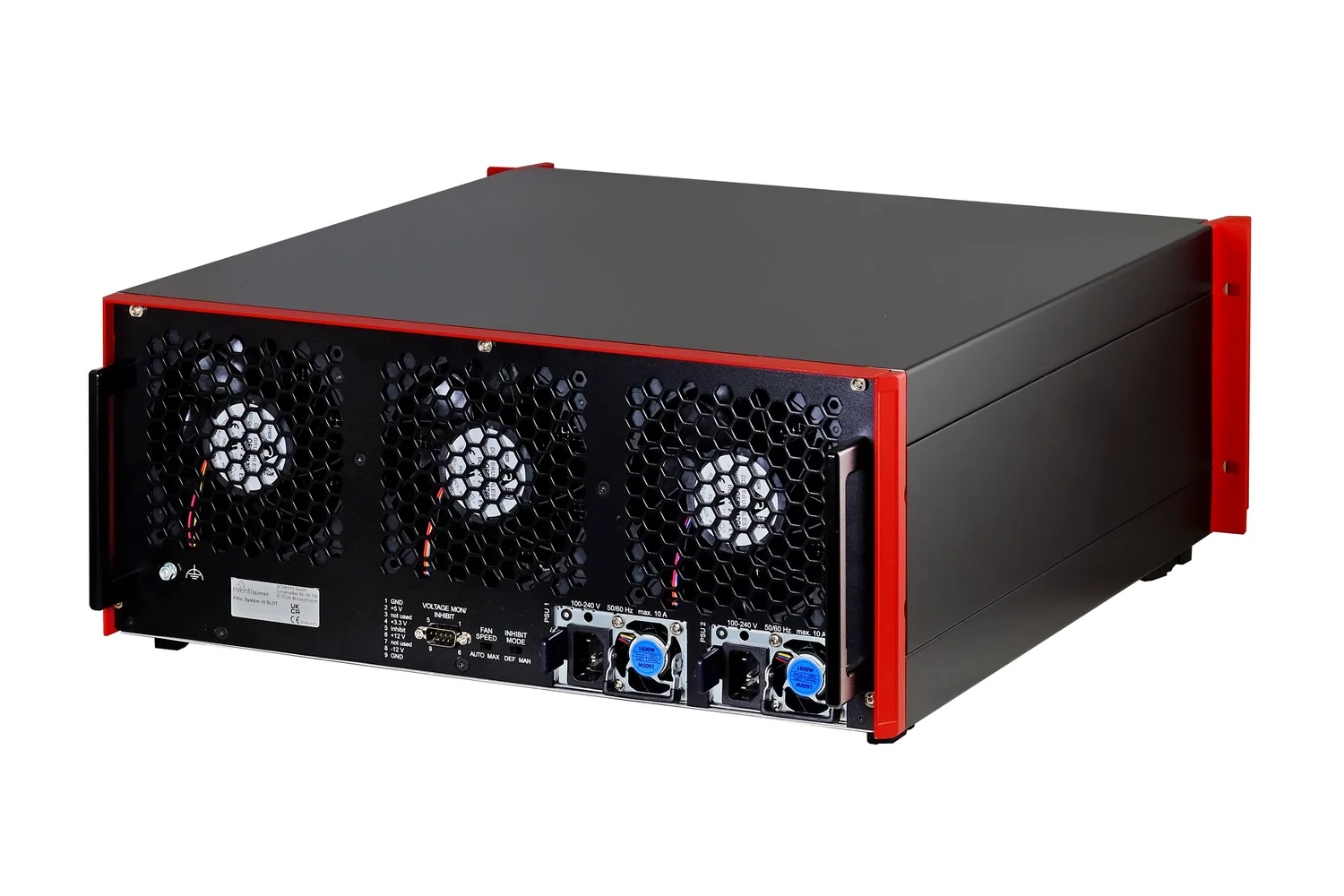

- Wide range AC input with mains switch on the rear side, power push button on the front (top) Rear panel external 10 MHz clock inputs/outputs
- Trigger in/ouput lines via SMA connector on the front side
Руководство по установке / Инструкция
Спецификация
Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | RatiopacPRO chassis with handles; 4 U, 84 HP, 466 mm deep; shielded; tip-up feet | 1 | |
| 2 | Front slot; IEEE guide rails, incl. ESD clips (ESD clips assembled at bottom front), for vertical boards (3 U, 160 mm deep) | 18 | |
| 3 | PXIe Backplane, 18 slots, System slot left | 1 | |
| 4 | PCIe 48 Lane Switch Module, PCIe Gen 3, mounted on backplane backside | 4 | |
| 5 | PCIe-PCI Bridge Module, PCIe x1 to 32-bit 33 MHz, mounted on backplane backside | 2 | |
| 6 | PXI Express Clock Module, PXI-1 & PXI-5 CLKs, mounted on backplane backside | 1 | |
| 7 | PXI Trigger Bridges, mounted on backplane backside | 3 | |
| 8 | Power supplies 2x 900 W rear pluggable; wide range input 100 ... 240 VAC | 2 | |
| 9 | Power Distribution Board with output: 3,3 V / 65 A, 5 V / 30 A, 12 V / 125 A, - 12 V / 2 A; 5 V aux / 3 A | 1 | |
| 10 | 120 mm fans | 3 | |
| 11 | Chassis Monitoring Module, CMM | 1 | |
| 12 | Power push button | 1 | |
| 13 | External 10 MHz REF clock output via BNC connector | 1 | |
| 14 | Optional 10 MHz REF clock source via BNC connector | 1 |
