Артикул: 14579-033
В наличии
Отправить заявку на расчет КП
Товар добавлен в корзину:

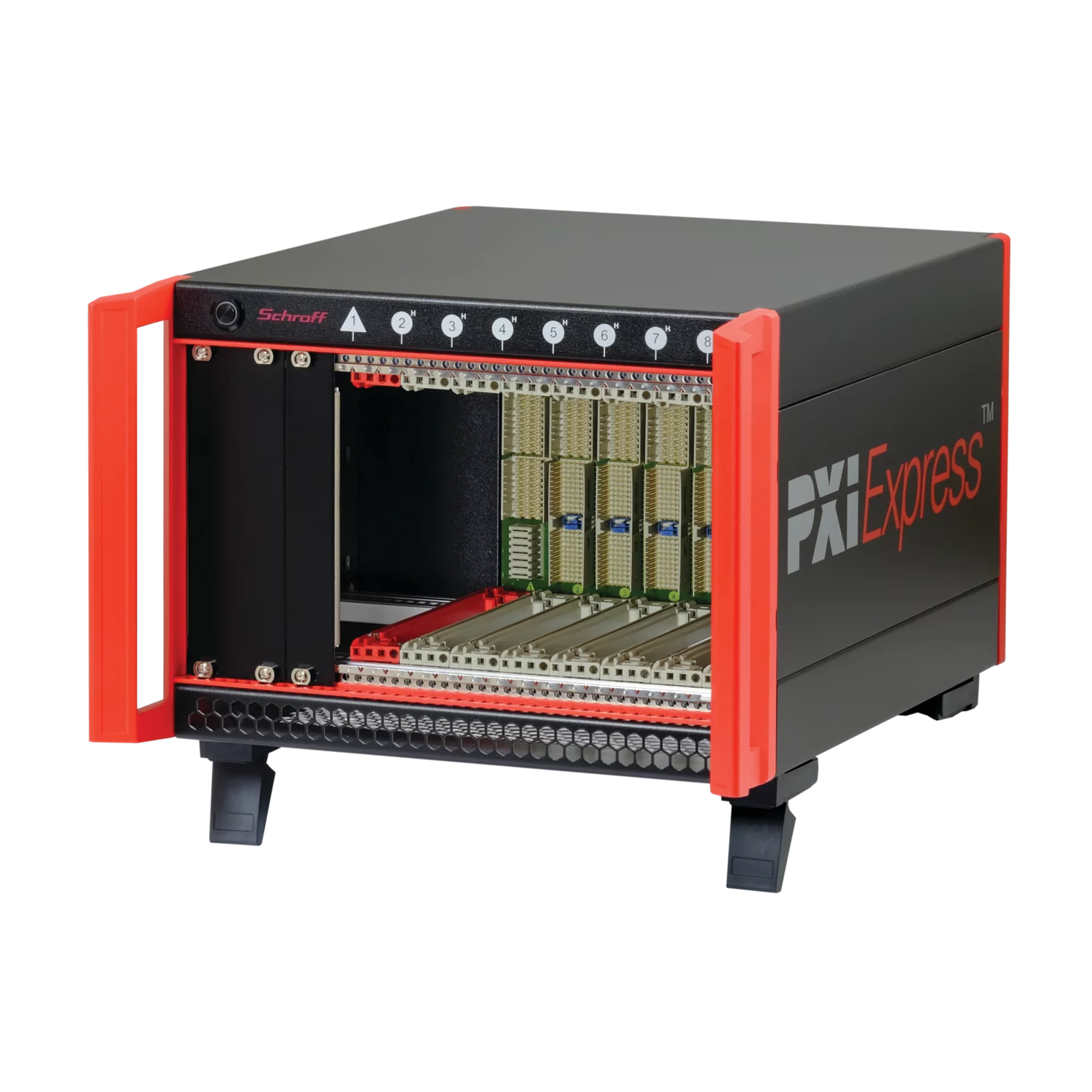

PXI Express System, 4 U, 8 slots, Gen2/3
- PXI Express Desktop Chassis, 4 U, 44 HP
- 1 PXIe System Slot an 7 Hybrid Slots
- Four-link System Slot, 3 Peripheral Slots with PCIe Gen3 x4 and 4 Peripheral Slots with PCIe Gen2 x1 Links
- Powerful cooling concept with low fan noise, 50 W per slot @ 15K temperature increase

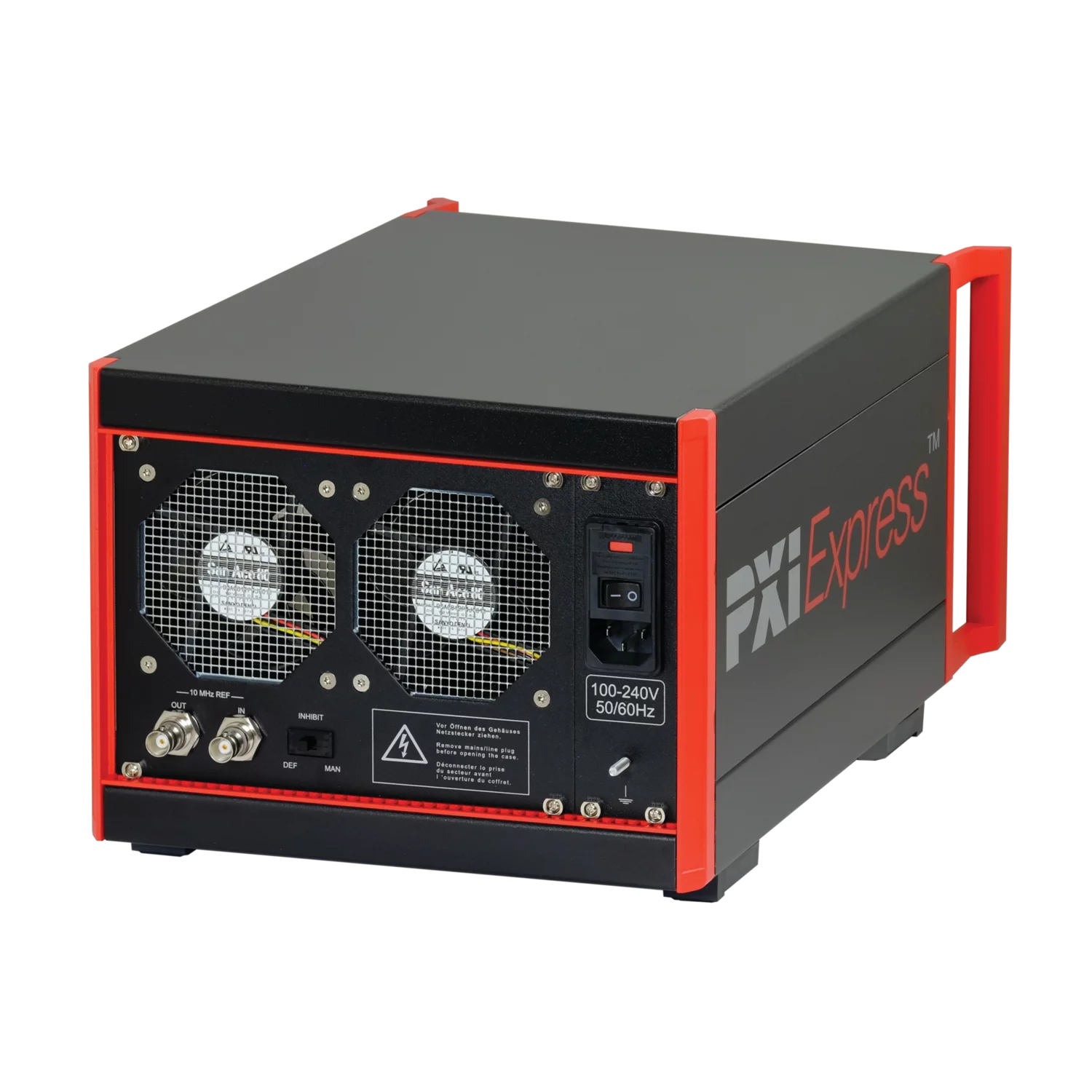

- Air flow from bottom to rear with temperature controlled fans; Integrated Chassis Monitoring Modul (CMM)
- Wide range AC input with mains switch on the rear side, power push button on the front (top)
- Rear panel external 10 MHz clock inputs/outputs
Firmware
Руководство по установке / Инструкция
Сертификация регулирующего органа
Спецификация
Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | RatiopacPRO chassis with handles; 4 U, 44 HP, 315 mm deep; shielded; tip-up feet | 1 | |
| 2 | Front slot; IEEE guide rails, incl. ESD clips (ESD clips assembled at bottom front), for vertical boards (3 U, 160 mm deep) | 8 | |
| 3 | PXIe Backplane for 3 U boards; 8 slots; system slot on the left | 1 | |
| 4 | PCIe 6 Lane Switch Module, PCIe Gen 2, mounted on backplane backside | 1 | |
| 5 | PCIe-PCI Bridge Module, PCIe x1 to 32-bit 33 MHz, mounted on backplane backside | 1 | |
| 6 | PXI Express Clock Module, PXI-1 & PXI-5 CLKs, mounted on backplane backside | 1 | |
| 7 | Power supply 400 W; wide range input 100 ... 240 VAC; output: 3.3 V/ 25 A, 5 V/25 A, 12 V/15 A, --12 V/2 A; 5 V aux/1 A | 1 | |
| 8 | 80 mm fans with 258 m³/h (152.3 cfm) each | 2 | |
| 9 | Chassis Monitoring Module | 1 | |
| 10 | Mains inlet connector with switch, filter and fuse | 1 | |
| 11 | Power push button | 1 | |
| 12 | External 10 MHz REF clock output via BNC connector | 1 | |
| 13 | Optional 10 MHz REF clock source via BNC connector | 1 | |
| 14 | Cable harness to connect all system components | 1 |
