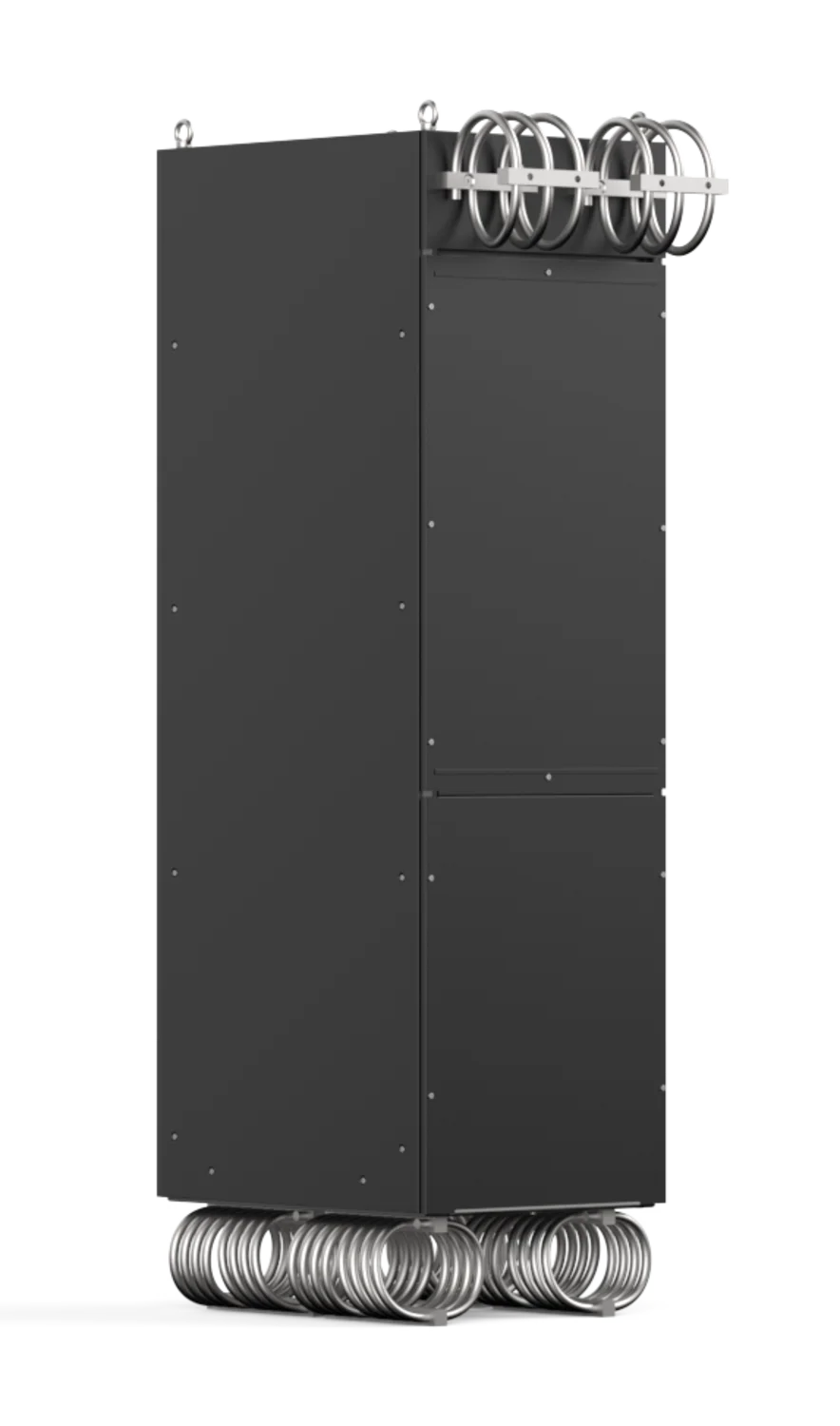

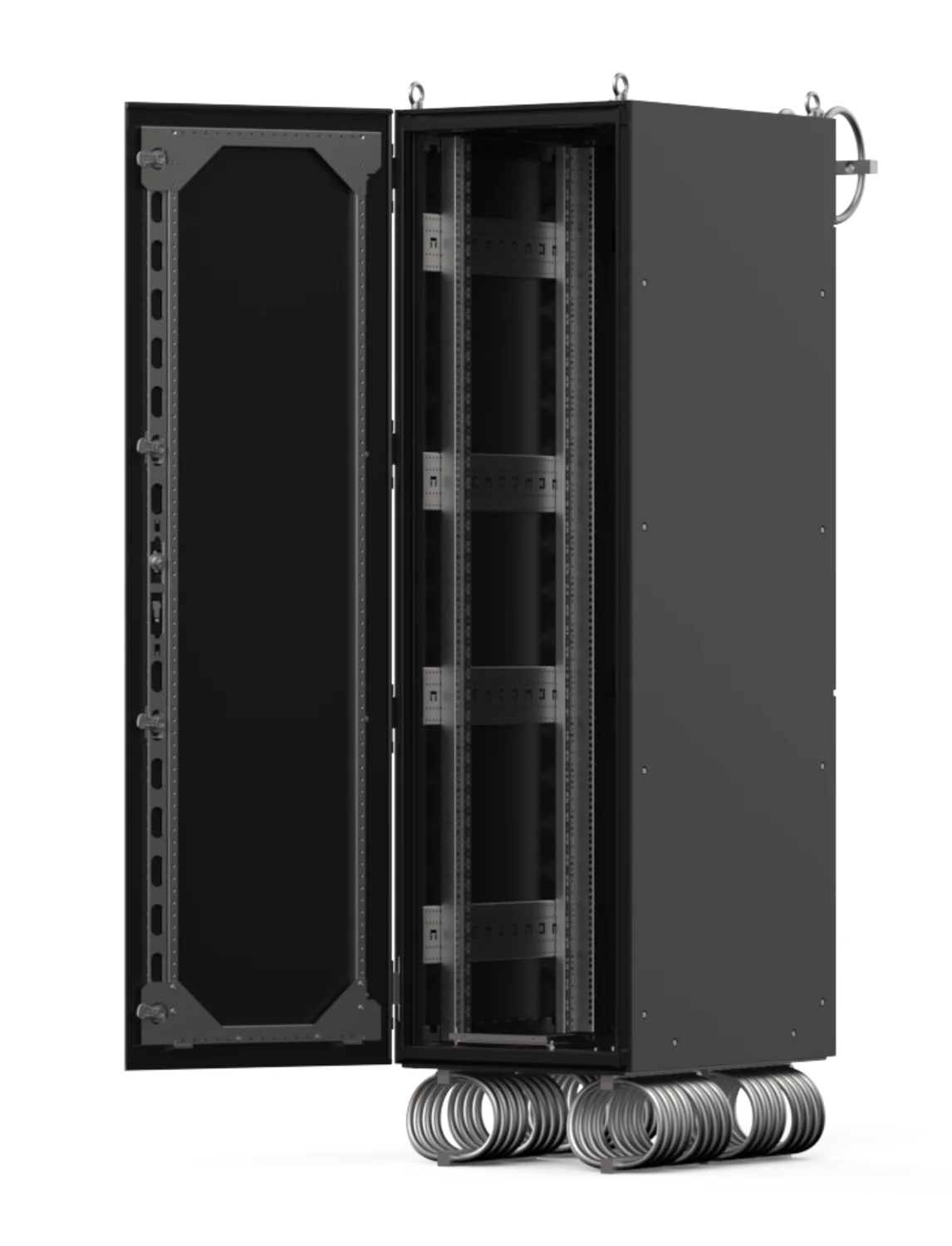

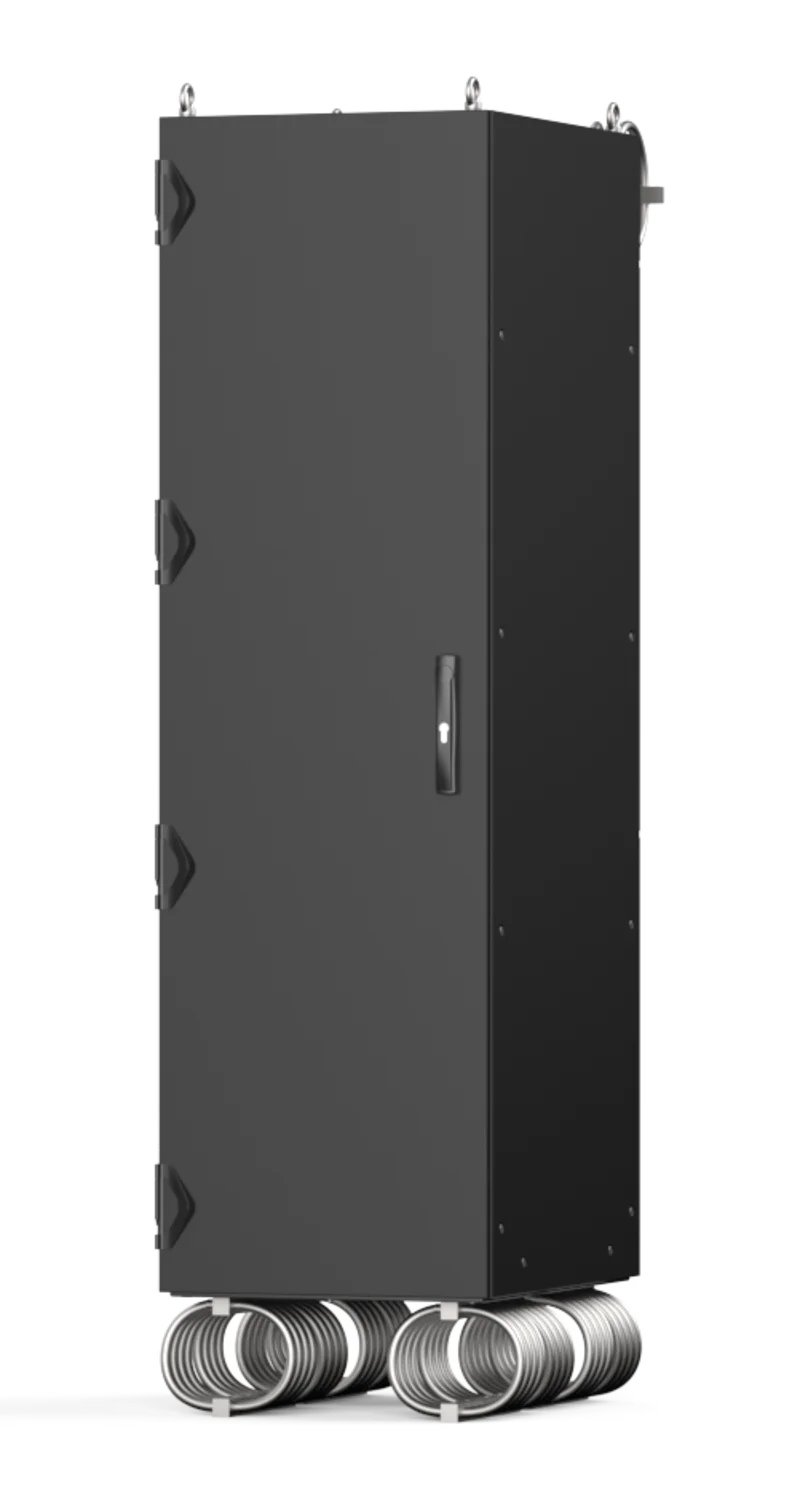

Varistar CP MIL 901E Cabinet, Military Certified for Shock, Vibration, EMC, and Corrosion
- NTS tested to MIL-DTL-901E for DSSM drop table test with weight loading of 460 KGs
- NTS tested to Test Procedure TP-PR168728-00 for EMI Shielding - Complies with MIL-STD-461G
- NTS tested to Mil-STD-810H for Corrosion Resistance
- NTS tested to Mil-STD- 167-1A for vibration
- Doubly protected against corrosion, zinc-plated and powder-coated
- 4 shock absorbers at bottom and 2 shock absorbers at top
- Rear panel horizontally partitioned in 3 parts - Top cover plate covering the shock absorber fixing area, Bottom cover plate for cable ducting, Middle rear panel closing the gap between the cover plates
- EMC Bottom plate adapted with through holes to connect the shock absorbers directly to the frame
Test Report
Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | Welded Varistar CP seismic frame 250 KGs, St profile, RAL 7021, with reinforcement brackets welded on floor frame, 10 mm, and rear frame 4 mm, St, finish Galvanized; base plate, St; 4 shock absorbers; EMC gasket | 1 | |
| 2 | Flat top cover, flush, St, finish Galvanized, exterior RAL 7021 | 1 | |
| 3 | Front door, St, finish Galvanized, RAL 7021, 4 x 180° hinge, 4‐point locking, lever handle | 1 | |
| 4 | MIL Door stopper, 90° and 120° opening positions | 1 | |
| 5 | Rear panel, top, screw fixed, stainless steel; 2 shock absorbers | 1 | |
| 6 | Rear panel, centre, screw fixed, St, finish Galvanized, RAL 7021 | 1 | |
| 7 | Rear panel, bottom, screw fixed, stainless steel | 1 | |
| 8 | Side panel, screw fixed, St, Galvanized, RAL 7021 | 2 | |
| 9 | 19" panel/slide mount with EIA perforation, St, finish AlZn, depth‐adjustable in 25 mm increments | 4 | |
| 10 | GND/earthing kit, assembled | 1 |
