Артикул: 10849-001
В наличии
Отправить заявку на расчет КП
Товар добавлен в корзину:

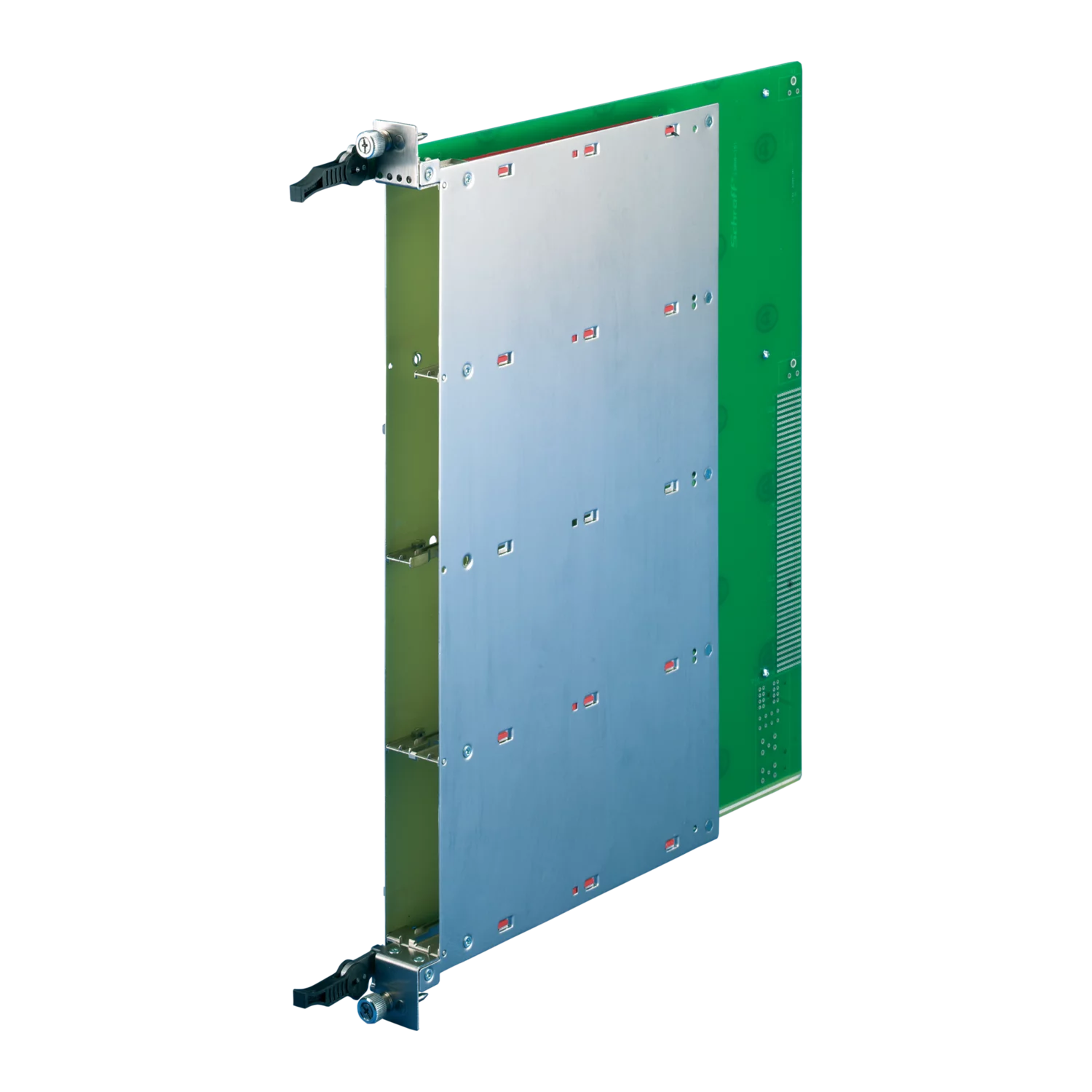

Механические компоненты носителя для компактных и полноразмерных модулей AdvancedMC
- Механические компоненты носителя для мезонинного модуля
- Ширина одного слота (6 HP), высота 8 U, в соответствии с PICMG® AMC.0 R2.0
- Нержавеющая сталь (ЭМС-экранирование)
Руководство по установке / Инструкция

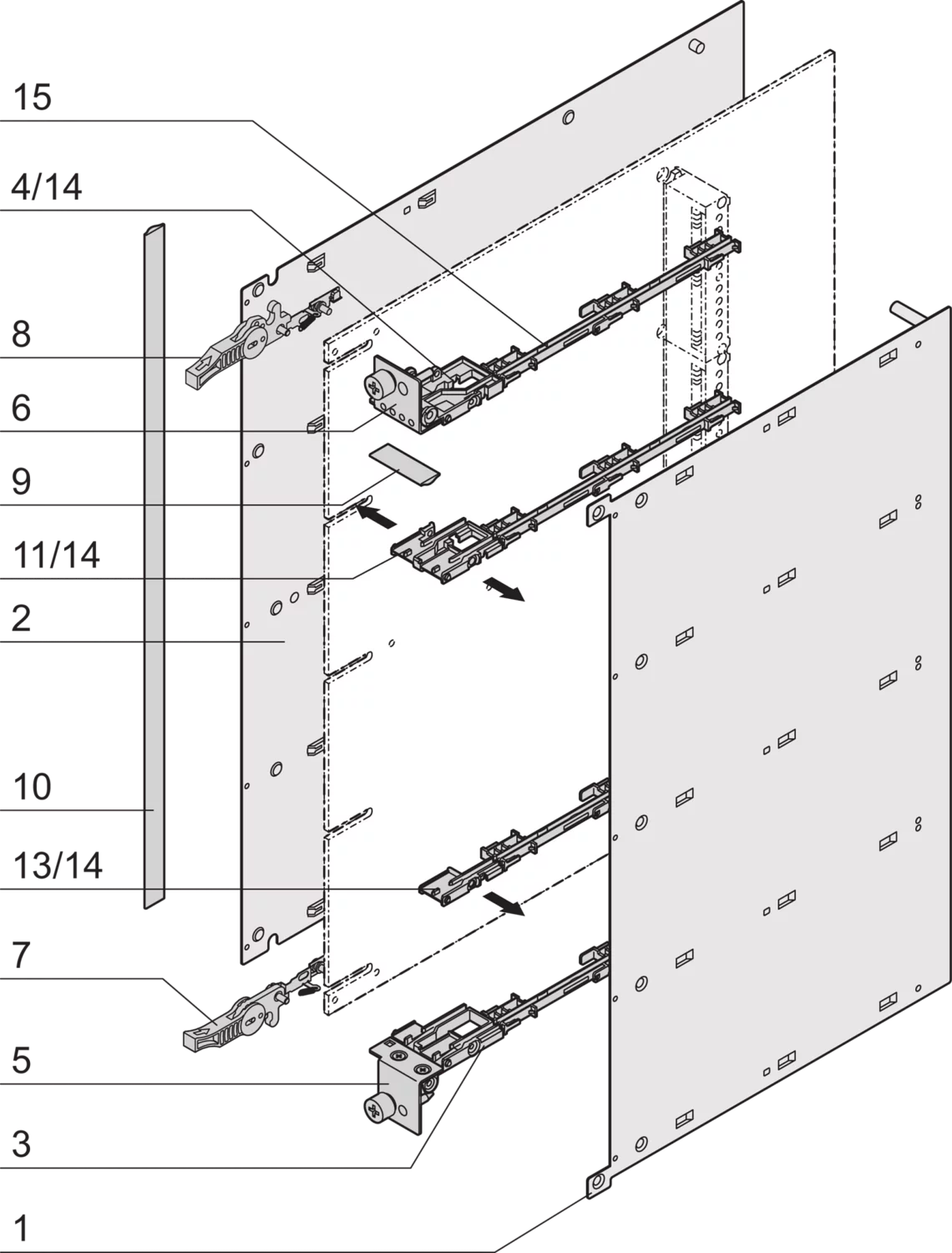

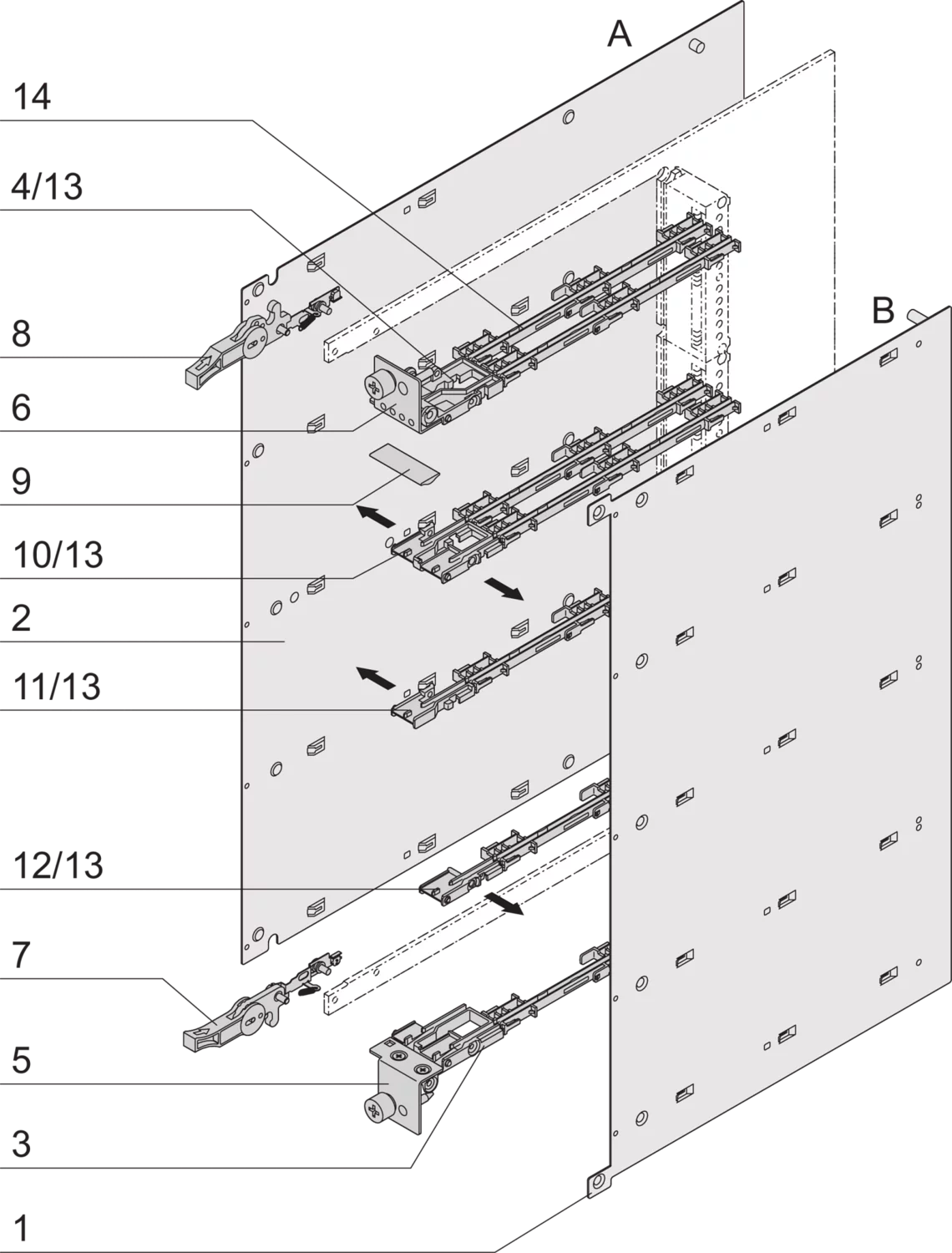

Delivery of this product includes the following item(s):
| Item | Description | Quantity | |
|---|---|---|---|
| 1 | Cover plate B (right), stainless steel, brushed, 0.6 mm, inner surface electrically insulated, exterior with protective film | 1 | |
| 2 | Cover plate A (left), stainless steel, brushed, 0.6 mm, inner surface electrically insulated, exterior with protective film | 1 | |
| 3 | Lower splitting extrusion (strut), Zn die‐cast, nickel‐plated | 1 | |
| 4 | Upper splitting extrusion (strut), Zn die‐cast, nickel‐plated | 1 | |
| 5 | Lower front panel, stainless steel, brushed, 1 mm, alignment pin and retention screws pressed in | 1 | |
| 6 | Upper front panel, stainless steel, brushed, 1 mm, alignment pin and retention screws pressed in, with holes for LEDs | 1 | |
| 7 | Standard inserter/extractor handle, with microswitch operation, plastic lever, black | 1 | |
| 8 | Standard inserter/extractor handle, plastic lever, black | 1 | |
| 9 | EMC profile seal, core: foam, sleeve: textile cladding with CuNi coating | 1 | |
| 10 | Support member between cover A and B | 3 | |
| 11 | Support member for cover A (on the left) | 3 | |
| 12 | Support member for cover B (on the right) | 3 | |
| 13 | ESD clip | 8 | |
| 14 | AdvancedMC guide rail, PBT, UL 94 V‐0, red | 10 | |
| 15 | Assembly kit | 1 |
