Артикул: 10849-002
В наличии
Отправить заявку на расчет КП
Товар добавлен в корзину:

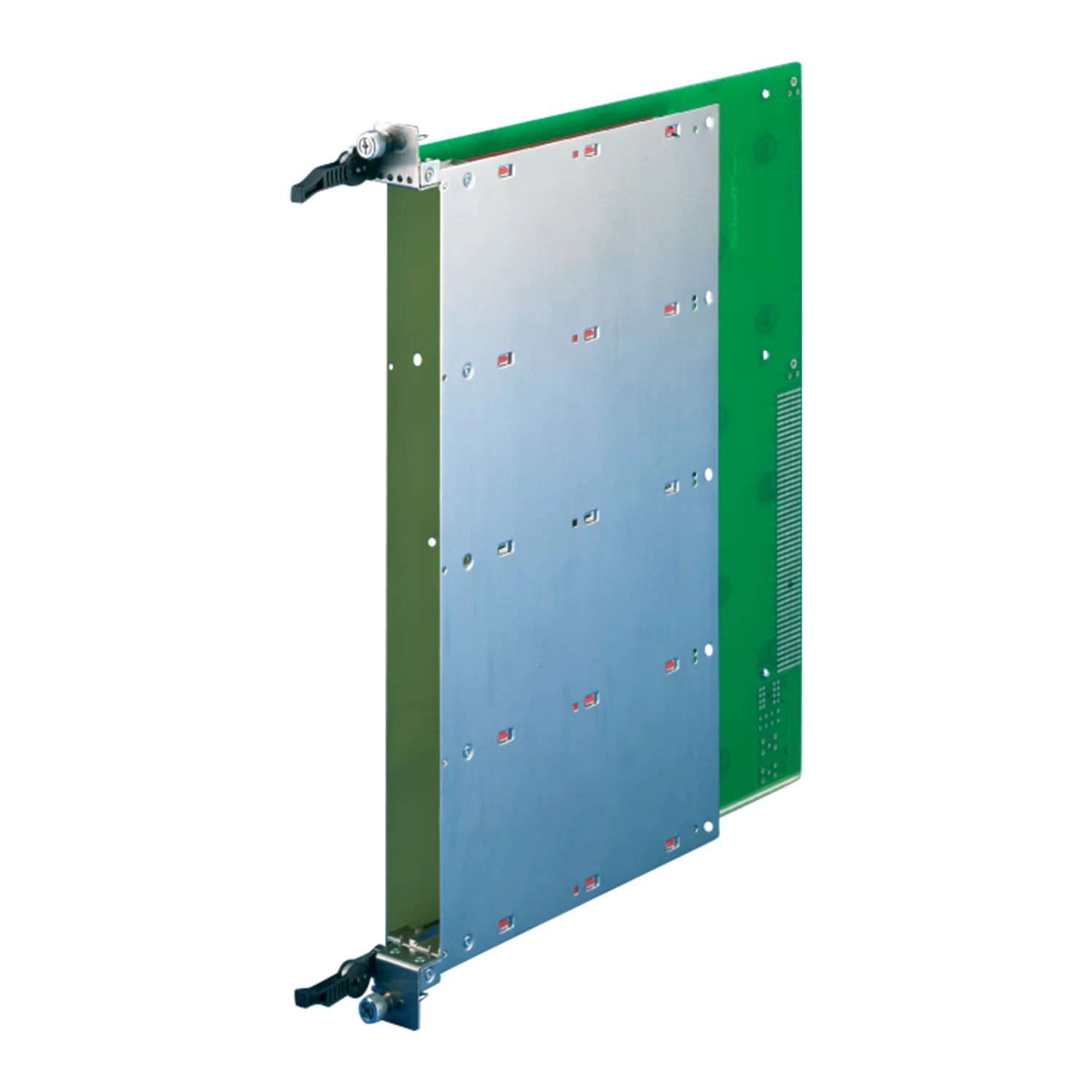

Механические компоненты платы-носителя для компактных и полноразмерных модулей AdvancedMC, без опорной стойки
- Механические компоненты носителя для мезонинного модуля
- Ширина одного слота (6 HP), высота 8 U, в соответствии с PICMG® AMC.0 R2.0
- Нержавеющая сталь (ЭМС-экранирование)
Руководство по установке / Инструкция
Delivery of this product includes the following item(s):

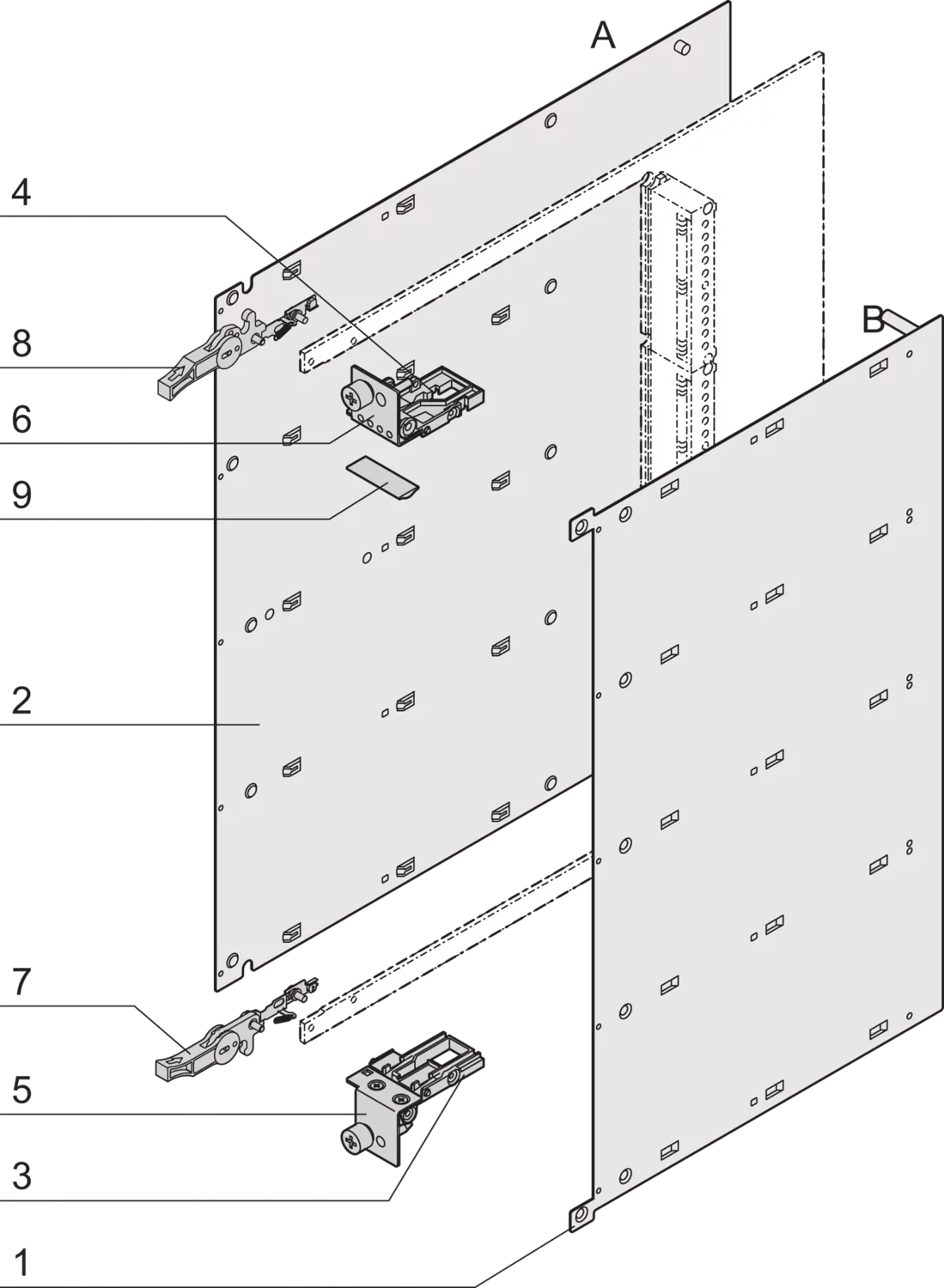

| Item | Description | Quantity | |
|---|---|---|---|
| 1 | Cover B (on the right), stainless steel, 0.6 mm, insulated interior, exterior with protection film | 1 | |
| 2 | Cover A (on the left), stainless steel, 0.6 mm, insulated interior, exterior with protection film | 1 | |
| 3 | Lower splitting extrusion (strut), Zn die-cast, nickel-plated | 1 | |
| 4 | Upper splitting extrusion (strut), Zn die-cast, nickel-plated | 1 | |
| 5 | Lower front panel, stainless steel, 1 mm, pressed-in alignment pin and retention screws | 1 | |
| 6 | Upper front panel, stainless steel, 1 mm, pressed-in alignment pin and retention screws, with holes for LEDs | 1 | |

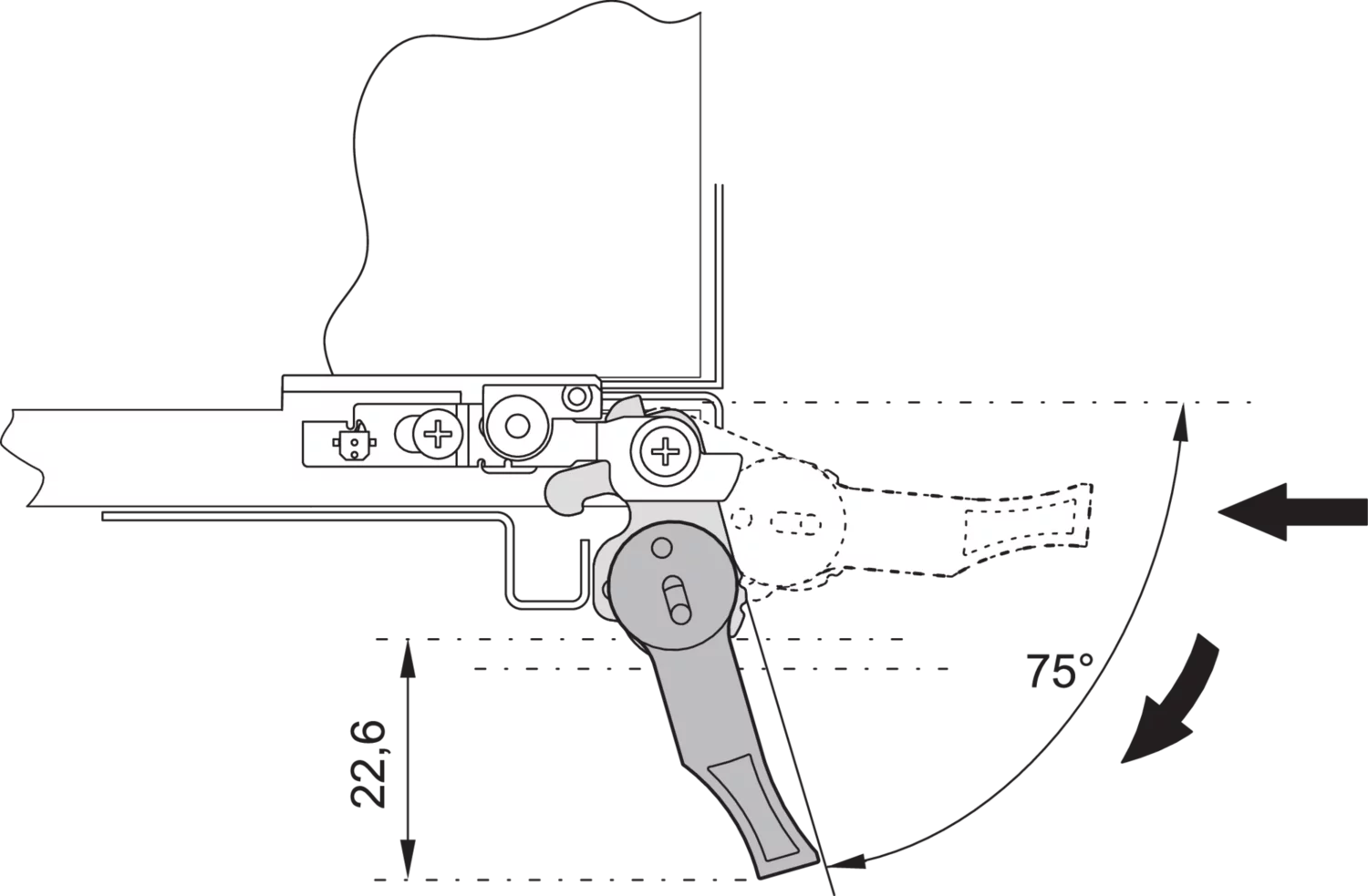

| 7 | Standard insertion/extraction mechanics, with micro switch operation, plastic lever, black | 1 | |

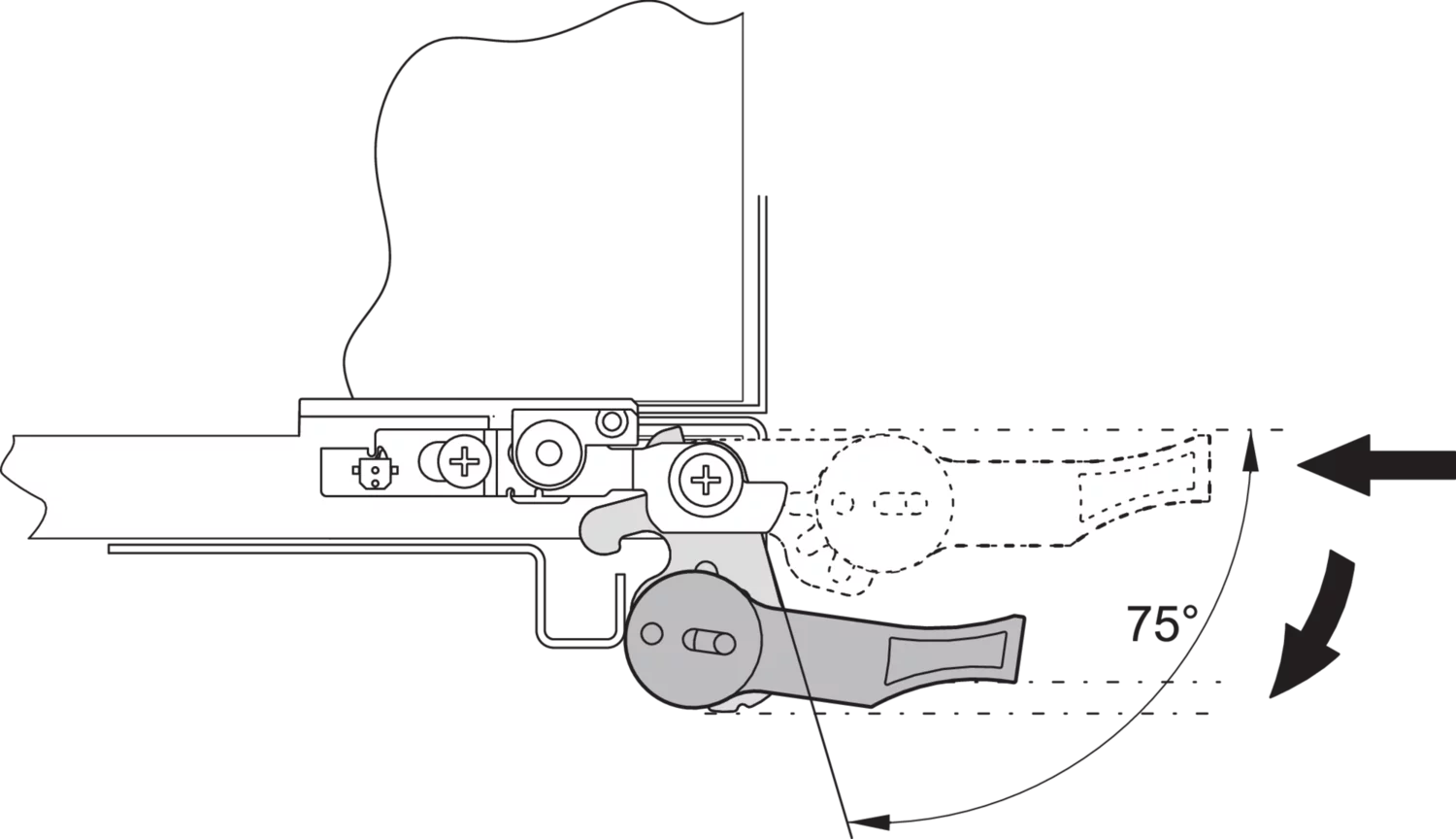

| 8 | Standard insertion/extraction mechanics, plastic lever, black | 1 | |
| 9 | EMC profile seal, core: foam, sleeve: textile cladding with CuNi coating | 1 | |
| 10 | Assembly kit | 1 |
